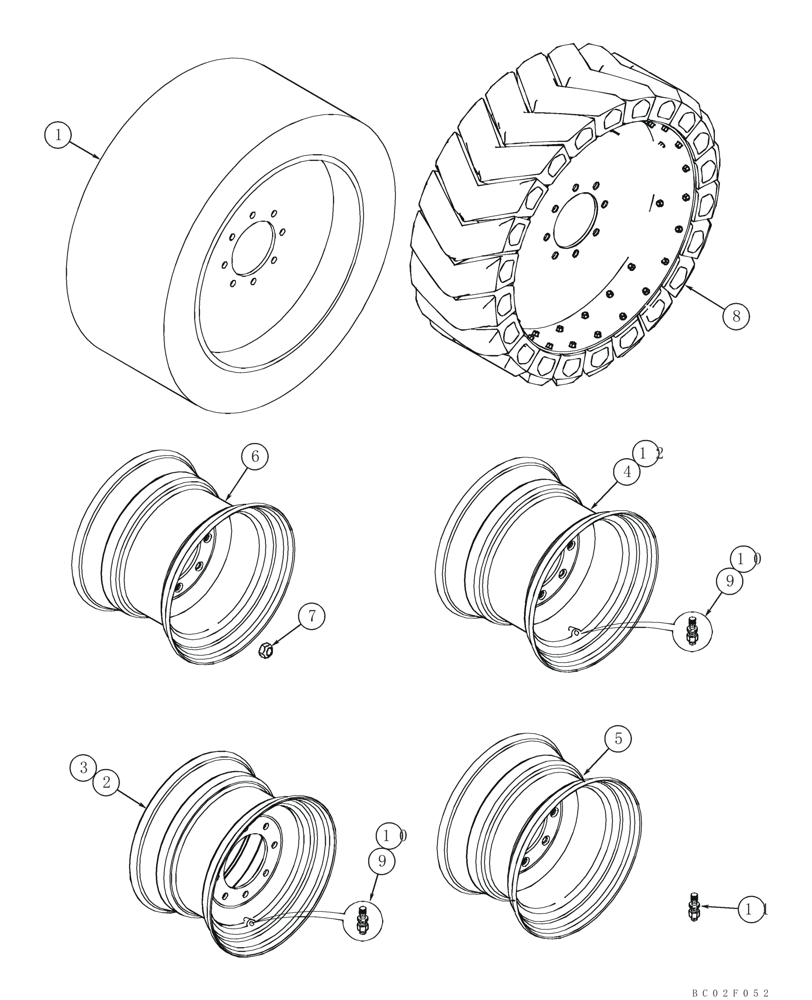

Запчасти Case 85XT (06-15) - WHEELS (Nov 3 2009 8:28AM) (06) - POWER TRAIN

1

198151A1

WHEEL

10 x 31; With Solid, Slick Tires; Machinery Item

4шт.

2

448569A1

WHEEL ASSY

16.5 x 9.75; Stamped Center; Used With 12 x 16.5 Inch Tire

4шт.

3

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire

4шт.

4

248048A2

RIM

WHEEL 16,5 x 12; Used With 33/15.50 x 16.5 Inch Tire

4шт.

5

189792A2

WHEEL

16.5 x 8.25; Used With 10 x 16.5 Inch Tire

4шт.

6

409174A2

RIM

WHEEL 16.5 x 12; Used With 33/15.5 x 16.5 Inch Tire

4шт.

7

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

MX 16 x 2-6G

32шт.

8

346266A1

SEGMENT

Contact Airboss Direct

1шт.

9

294579A1

VALVE STEM

Use With 2, 3, 4

4шт.

10

372445A1

VALVE STEM

Use With 3, 4

4шт.

11

T57461

VALVE STEM

Use With 5, 12

4шт.

12

238584A1

RIM

WHEEL 12 x 16.5; Used With 33/15.5 x 16.5 Inch Tire

4шт.

86512498

FLANGE NUT,M16 x 2, Cl 10

See Figure 06-15, Ref 2

32-64шт.
