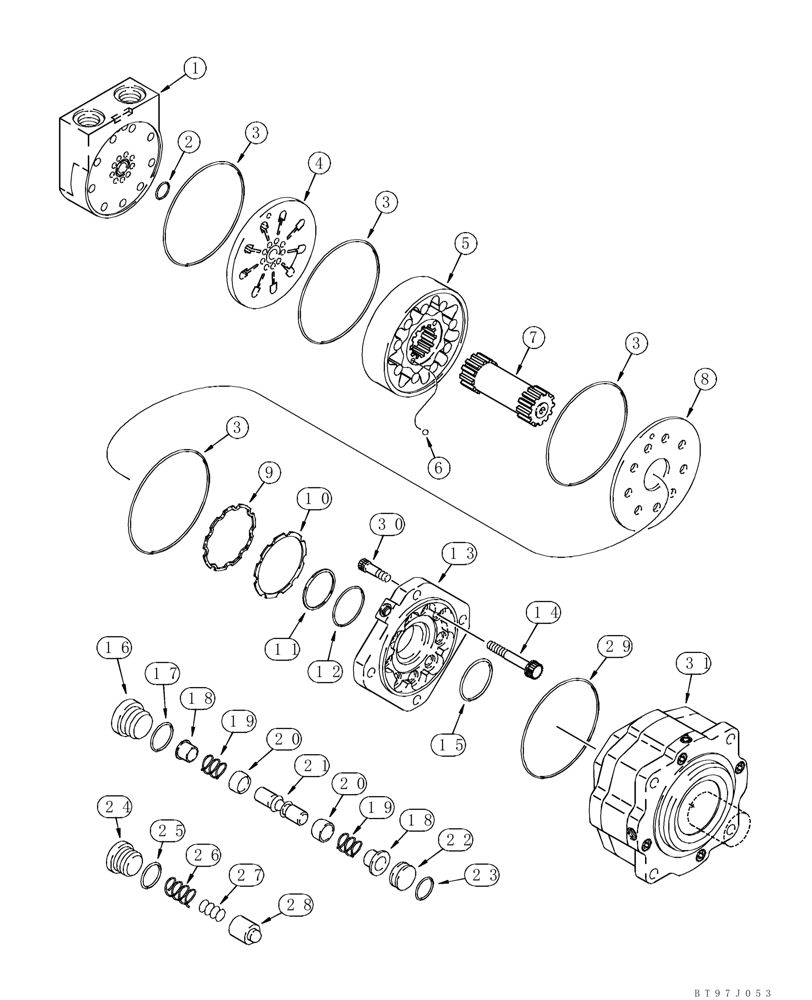

Запчасти Case 85XT (06-12) - MOTOR ASSY (Dec 2 2011 11:54AM) (06) - POWER TRAIN

349157A2

MOTOR, HYDRAULIC

Incl. 1 - 31; Also Incl. 359619A2; See Figure 07-01

2шт.

87457450

MOTOR, HYDRAULIC

HYDRAULIC MOTOR; Includes 1 - 30, Ref. 31 Order Separate

1шт.

87457450R

REMAN-HYD MOTOR

1шт.

87457450C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

282784A1

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

O-Ring; Order 282810A1

1шт.

3

NSS

NOT SOLD SEPARAT

Seal; Order 282810A1

4шт.

4

282806A1

PLATE

1шт.

5

282791A1

GEAR-SET

1шт.

6

140784A1

BALL

2шт.

7

282794A1

DRIVE DOG

1шт.

8

282785A1

LARGE PLATE

PLATE, LARGE

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

10

NSS

NOT SOLD SEPARAT

Seal; Order 282810A1

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup; Order 282810A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring; Order 282810A1

1шт.

13

282793A1

FLANGE

1шт.

14

282799A1

SCREW

9шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

282804A1

PLUG

Incl. 17

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring; Order 282810A1

1шт.

18

438417A1

SLEEVE

Replaces 251509A1

2шт.

19

251506A1

SPRING

2шт.

20

251511A1

VALVE POPPET

2шт.

21

282802A1

PISTON ASSY.

1шт.

22

282805A1

PLUG

Incl. 23

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring; Order 282810A1

1шт.

24

282787A1

PLUG

Incl. 25

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring; Order 282810A1

1шт.

26

282789A1

SPRING

1шт.

27

282788A1

SHIM

1шт.

28

438416A1

VALVE POPPET

Replaces 282790A1

1шт.

29

360750A1

O-RING

1шт.

30

282809A1

SCREW

4шт.

31

359619A2

BRAKE ASSY.

See Figure 07-01

1шт.

282810A1

SEAL KIT

Incl. 2, 3, 9, 10, 11, 12, 15, 17, 23, 25

1шт.

360763A1

KIT

Service; Incl. 1 - 28; Also Incl. 282810A1

2шт.
