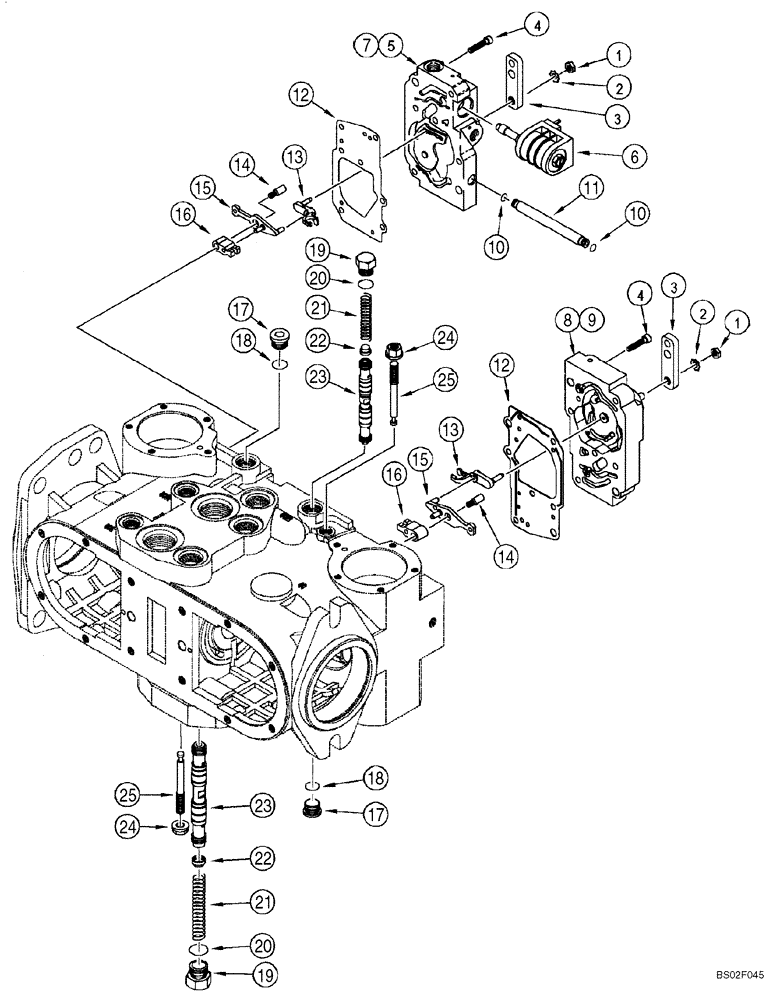

Запчасти Case 85XT (06-09) - PUMP, TANDEM, CONTROL (Aug 13 2010 12:23PM) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
433902A1
PUMP
See Figure 06-06; Incl. 06-07 - 06-10
1шт.
87297988
REMAN-HYD PUMP
Remanufactured PUMP - N.A. Only
1шт.
87297989
CORE-HYDRAULIC PUMP
Return No, PUMP - N.A. Only
1шт.
1
324796A1
NUT
2шт.
2
493-41033
LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk
2шт.
3
259487A1
LEVER
2шт.
4
233022A1
SCREW
14шт.
5
372551A1
KIT
Control Block; Front Pump; Component Parts Not Serviced Separately; Incl. 372552A1; Component Of 357008A1; No Longer Used; Order 436130A1
1шт.
6
372552A1
SOLENOID
Retained By Snap Ring 300962A1
1шт.
300962A1
RING, SNAP
RING SNAP
1шт.
7
436130A1
KIT
Control Block; Front Pump; Incl. 436129A1, 436132A1, Not Illustrated Separately; Component Of 433902A1; See Figure 06-06
1шт.
436129A1
RING, SNAP
RING SNAP
1шт.
436132A1
SWITCH
Backup Alarm
1шт.
372446A1
KIT
Adapter; Not Illustrated; See Figure 06-06
1шт.
8
320274A1
SET OF PARTS
Control Block; Rear Pump; Component Parts Not Serviced Separately; Component Of 357008A1; See Figure 06-06; No Longer Used; Order 436131A1
1шт.
9
436131A1
KIT
Control Block; Rear Pump; Incl. 436129A1, 436132A1, Not Illustrated Separately; Component Of 433902A1; See Figure 06-06
1шт.
436129A1
RING, SNAP
RING SNAP
1шт.
436132A1
SWITCH
Backup Alarm
1шт.
10
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
2шт.
11
324798A1
TUBE
1шт.
12
233035A1
GASKET
2шт.
13
233024A1
JOINT
Control Spool
2шт.
14
233023A1
SCREW
2шт.
15
233026A1
JOINT
Feedback
2шт.
16
233027A1
JOINT
Adjustment
2шт.
17
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl 18
2шт.
18
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
19
291791A1
PLUG
Incl. 20
2шт.
20
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
2шт.
291115A1
SPOOL
Incl. 21 - 23
2шт.
21
291117A1
SPRING
1шт.
22
291120A1
SPRING SEAT
1шт.
23
291116A1
SPOOL
1шт.
24
233029A1
NUT
2шт.
25
324795A1
SET SCREW
2шт.
Выбрано товаров: 35
