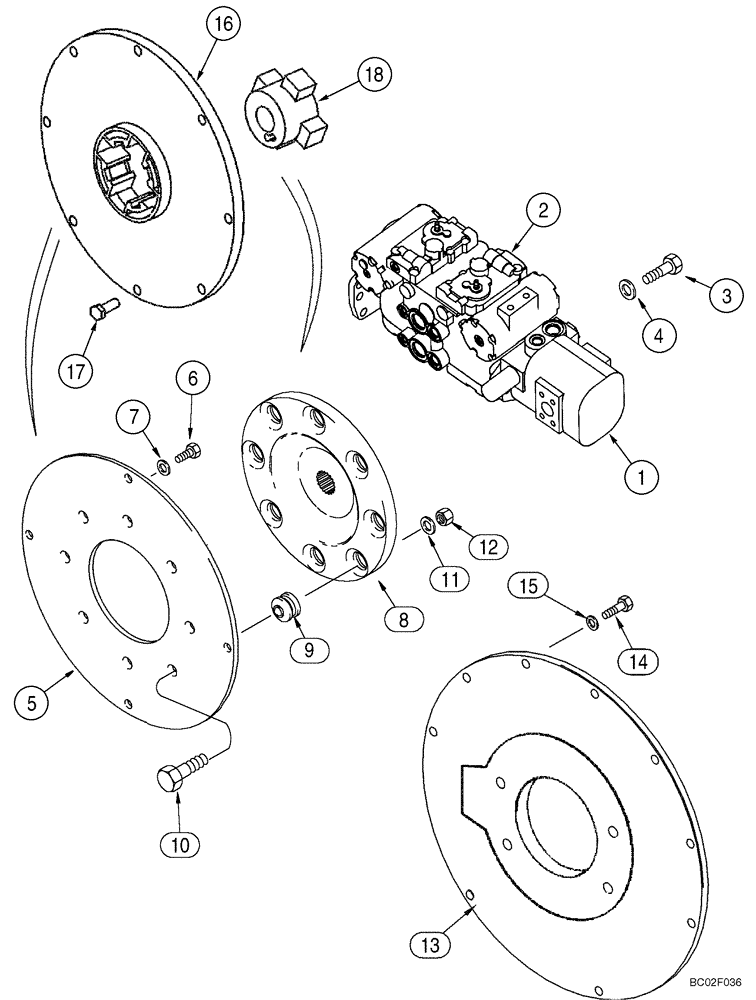

Запчасти Case 85XT (06-06) - PUMP, TANDEM - MOUNTING (NOV 22 2011 10:46AM) (06) - POWER TRAIN

357005A1

PUMP

Vendor Part Number M51-4525271; Incl. 291121A2, 357008A1; Also Incl. 06-07, 06-10; No Longer Available, Order 433902A1; Also Order 372446A1; See Figure 06-06, 06-09

1шт.

433902A1

PUMP

Vendor Part Number M51-4525012; Incl. 291162A2, 433905A1; Also Incl. 06-07 - 06-10

1шт.

87297988

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

87297989

CORE-HYDRAULIC PUMP

Return No, PUMP

1шт.

1

291162A2

PUMP

40 cc; See Figure 06-11

1шт.

1

291162A2R

REMAN-HYD PUMP

85XT ASN JAF0352234, 90XT ASN JAF0320050

1шт.

1

291162A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

433905A1

PUMP

Tandem; Vendor Part Number 4525015; Replaces 357008A1; Also Incl. 06-07 - 06-10

1шт.

2

433905A1R

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

2

433905A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml; Blue

1шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

5

404801A1

LARGE PLATE

PLATE, LARGE If Used

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

8

H436270

SPLINED COUPLING,19T, Drive, 8 Hole

If Used, Drive Coupler

1шт.

9

278365A1

BUSHING,11.5mm ID x 31.75mm OD x 26.9mm L

8шт.

10

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Use with 5

8шт.

11

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

8шт.

12

232-4117

LOCK NUT,7/16"-14, GC

8шт.

13

275087A4

SUPPORT

1шт.

14

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

9шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

9шт.

372446A1

KIT

Adapter; Incl. 372447A1

1шт.

372247A1

HARNESS

Pump Adapter

1шт.

16

436436A1

DRIVE PLATE,314.32mm OD

If Used

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Use with 16

8шт.

18

436435A1

HUB

If Used

1шт.
