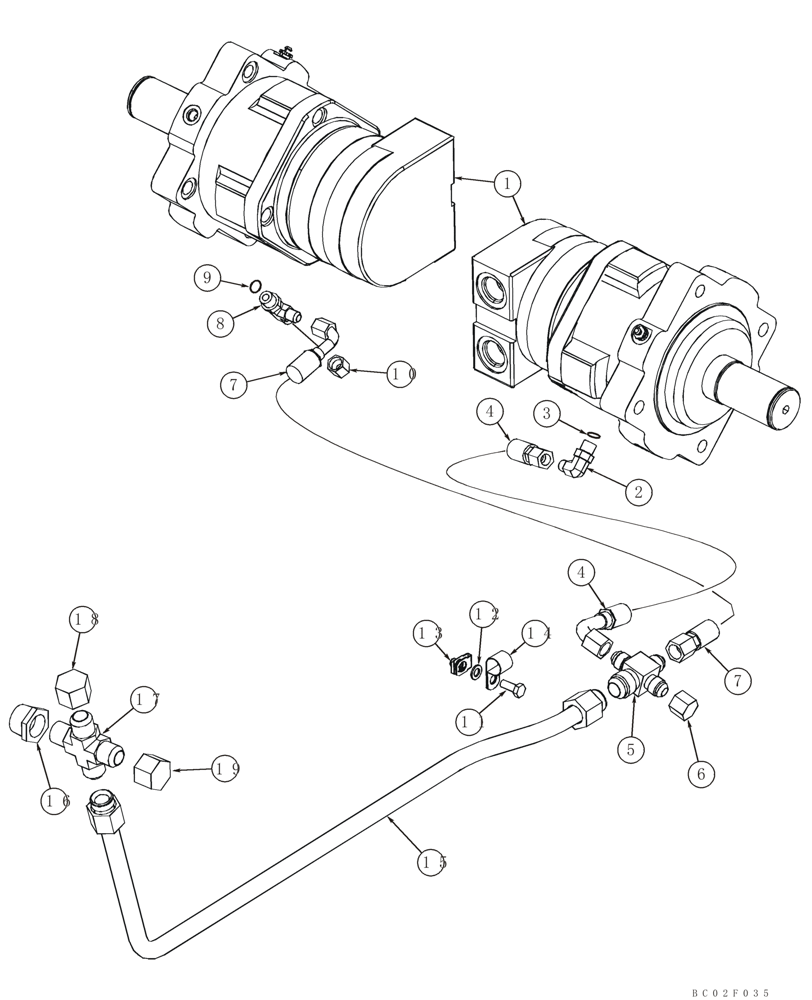

Запчасти Case 85XT (06-02) - HYDROSTATICS - CASE DRAIN (Oct 1 2010 9:50AM) (06) - POWER TRAIN

1

349157A2

MOTOR, HYDRAULIC

See Figure 06-12

2шт.

1

87703266

HYDRAULIC MOTOR

Replaces 349157A2; See Fig 06-18A

2шт.

1

87703266R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

1

87703266C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg, 9/16 fl x adj Or; Incl. 3

1шт.

4

419061A1

HOSE ASSY.

710 mm (28 in); Motor Case Drain; Right Hand

1шт.

5

418507A1

FITTING

Cross Union

1шт.

6

218-755

CAP,37 Degree, 3/4"-16

Models with Ride Control; See Figure 08-04

1шт.

7

419060A1

HOSE ASSY.

405 mm (16 in); Motor Case Drain; Left Hand

1шт.

8

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 9

1шт.

10

218-754

CAP,37 Degree, 9/16"-18

Models WIth Manual Brake Release; See Figure 07-03, Ref 9

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

1шт.

13

833-40008

SPRING NUT,M8, U

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

15

419093A1

TUBE

Case Drain To Tank

1шт.

16

221-1604

REDUCER,Hex, 1" x 3/4" NPT

1 x 3/4

1шт.

17

306389A1

CROSS

Union

1шт.

18

218-335

CAP,37 Degree, 1 1/16"-12

Models With Hydraulic Coupler; See Figure 08-05, Ref 37

1шт.

19

218-335

CAP,37 Degree, 1 1/16"-12

Models With High Flow; See Figure 08-19

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
