Запчасти Case 85XT (04-24) - MOUNTING - LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS

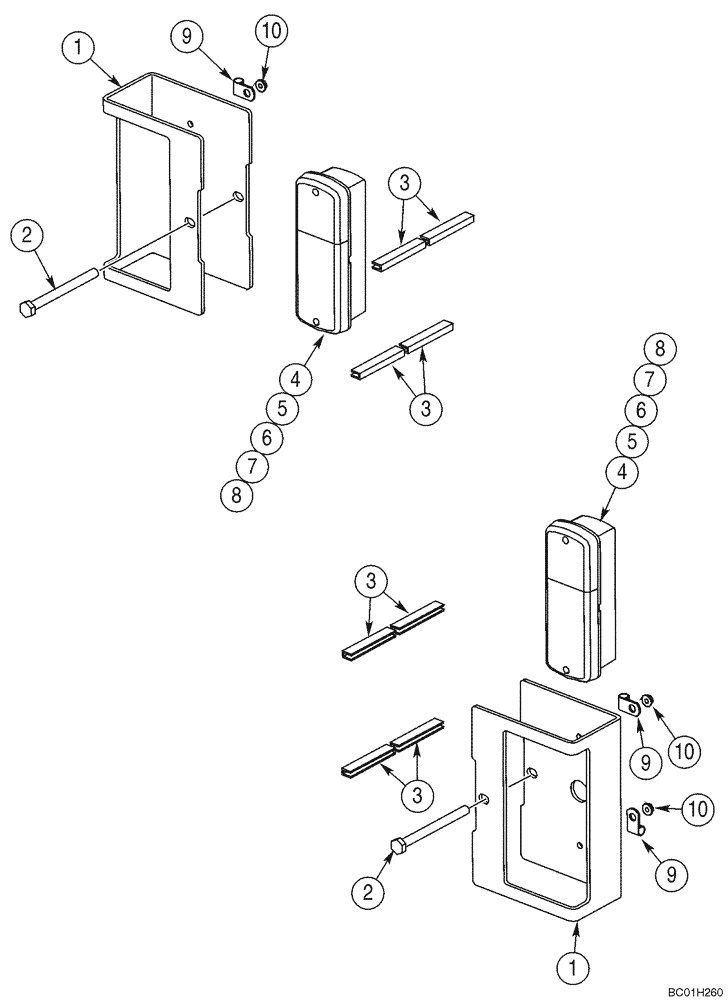

Схема запчастей Case 85XT - (04-24) - MOUNTING - LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS
10
5
7
3
8
3
5
10
2
6
6
10
9
9
2
8
4
3
1
9
3
1
7
4

Артикул

Название

Примечание

Количество

1

367573A1

SUPPORT

2шт.

2

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

3

D55218

SEAL, GLASS,76mm L

76 mm (3 in); Cut From F42827

10шт.

4

177239A2

LAMP, TAIL

LIGHT, TAIL Assembly; Combination; Incl. 5 - 8

2шт.

5

187140A1

LENS

1шт.

6

1094366R1

BULB

12V, 21W; Turn Signal; Replaces 3131227R1

1шт.

7

3131234R1

BULB,P25-2, 12V, 5W

Stop and Tail

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Junct.

1шт.

9

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

Replaces 515-2295

4шт.

10

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

Выбрано товаров: 10
