Запчасти Case 85XT (04-23) - MOUNTING - LAMP ASSY, COMBINATION, FRONT (04) - ELECTRICAL SYSTEMS

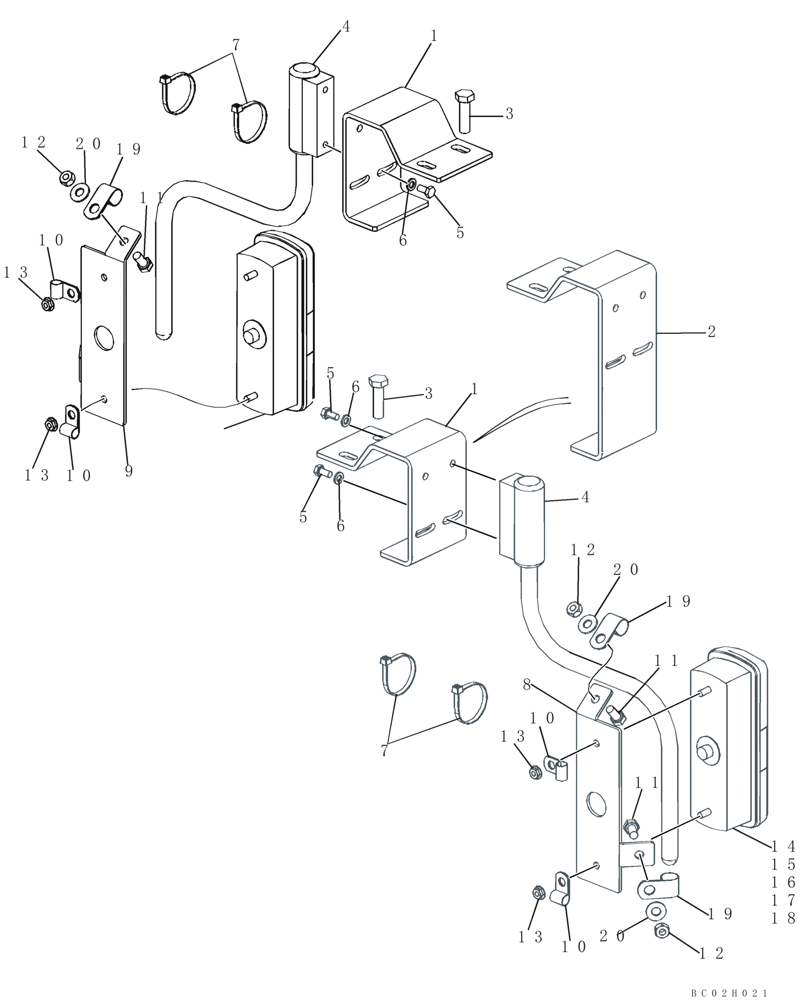

Схема запчастей Case 85XT - (04-23) - MOUNTING - LAMP ASSY, COMBINATION, FRONT (04) - ELECTRICAL SYSTEMS
11
10
4
7
13
16
4
10
20
15
7
20
17
13
19
1
8
20
1
13
12
3
5
9
11
14
2
18
13
6
5
10
bc02h021
6
19
12
12
11
19
10
3
6
5

Артикул

Название

Примечание

Количество

1

308649A1

SUPPORT

If Used

1-2шт.

2

451776A1

BRACKET

Right Hand; If Used

2шт.

3

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

M10 x 35

2шт.

4

310860A1

SUPPORT

Mounting

2шт.

5

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

8

308570A1

SUPPORT

1шт.

9

308571A1

SUPPORT

1шт.

10

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

Replaces 515-2295

4шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

Replaces 614-8016

4шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

13

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

14

233152A2

LIGHT

Assembly; Combination; Incl. 14 - 17

2шт.

15

282074A1

LENS

1шт.

16

1094366R1

BULB

12V, 21W; Turn Signal; Replaces 3131227R1

1шт.

17

71421

BULB,R5W, 12V, 5W

Position

1шт.

18

277904A1

ELEC CONNECTOR,Female, 4 Pin

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 20
