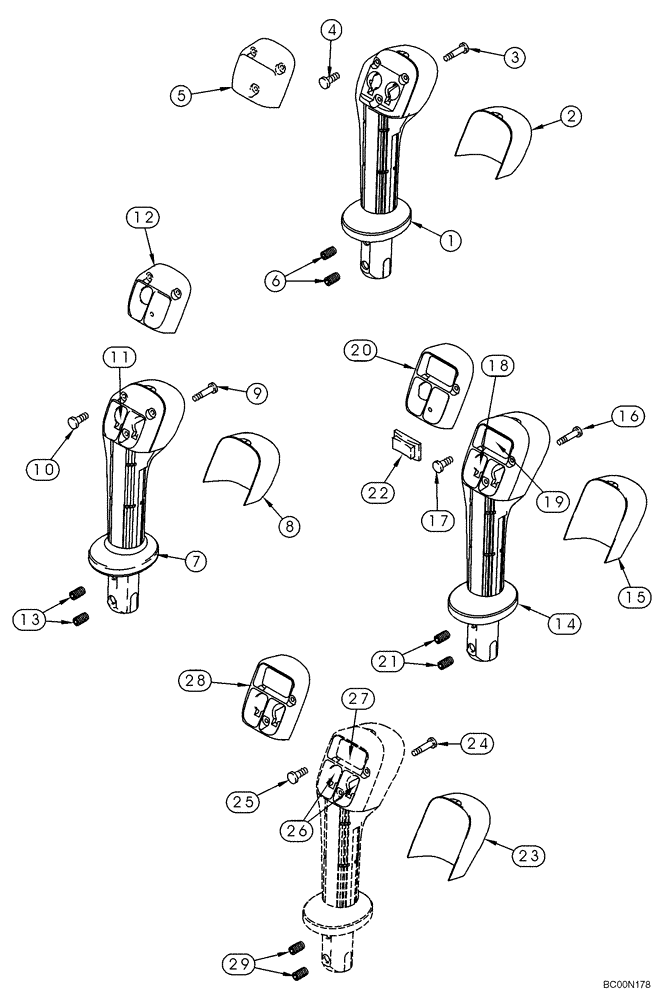

Запчасти Case 85XT (04-17) - CONTROLS, RIGHT HAND - HANDLE (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

NO SWITCHES

1шт.

235763A1

HANDLE

Control; No Switches; Incl. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

2

291792A1

CAP

1шт.

3

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

4

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

5

291794A1

PLASTIC PLATE

Blank

1шт.

6

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

REF

INSTRUCTION

SINGLE SWITCH

1шт.

235766A2

HANDLE

Control; Right Hand; Single Switch; Incl. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

8

291792A1

CAP

1шт.

9

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

10

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

11

303891A1

SWITCH

Push Button; Horn

1шт.

12

291795A2

PLASTIC PLATE

1шт.

13

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

REF

INSTRUCTION

TWO SWITCH

1шт.

233436A2

HANDLE

Control; Right Hand; Two Switch; Incl. 14 - 21; If Used

1шт.

379500A1

HANDLE

Control; Right Hand; Two Switch; Incl. 14 - 21; If Used

1шт.

14

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

15

291793A1

CAP

1шт.

16

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

17

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

18

303891A1

SWITCH

Push Button; Horn

1шт.

19

291802A1

SWITCH

Rocker; Turn Signal or Auxiliary Electric

1шт.

20

291798A2

PLASTIC PLATE

1шт.

21

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

22

303893A1

BOOT

Rocker Switch

1шт.

REF

INSTRUCTION

THREE SWITCH

1шт.

308598A1

HANDLE

Control; Right Hand; Three Switch; Incl. 23 - 29; If Used

1шт.

379501A1

HANDLE

Control; Right Hand; Three Switch; Incl. 23 - 29; If Used

1шт.

23

291793A1

CAP

1шт.

24

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

25

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

26

303891A1

SWITCH

Push Button; Horn

2шт.

27

291802A1

SWITCH

Rocker; Turn Signal

1шт.

28

291797A2

PLASTIC PLATE

1шт.

29

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.
