Запчасти Case 85XT (04-14) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS

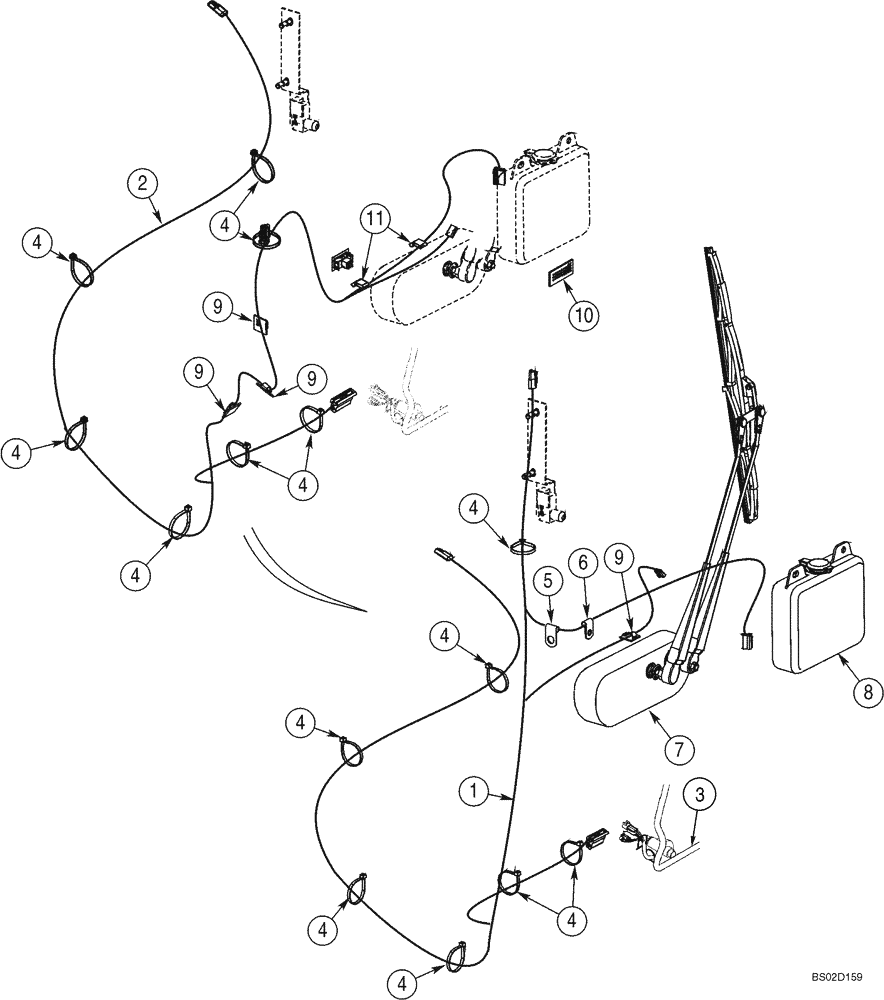

Схема запчастей Case 85XT - (04-14) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS
4
9
4
10
4
4
4
4
9
7
6
4
1
2
11
4
4
9
4
8
5
4
3
9

Артикул

Название

Примечание

Количество

1

417593A1

HARNESS

Cab/Front Door; Models With Glass Front Door; See Figure 09-32

1шт.

2

417593A2

HARNESS

Cab/Front Door; Models With Glass Front Door; Replaces 417593A1; See Figure 09-32

1шт.

3

227762A5

HARNESS

Cab, See Figre 04-12

1шт.

256340A1

CONNECTOR, ELEC

CONNECTOR 2-Prong Headlight Connector = (1) Of P/N 256340A1 & (2) Of Terminal P/N 221381A1

1шт.

258613A1

LOCK

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

7шт.

5

515-2579

CLAMP,5/16", Insul, 1/8" Bolt

7,9 mm; No Longer Available

1шт.

6

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm); If Used

1шт.

7

398129A2

KIT

Wiper; See Figure 04-16; Replaces 398129A1

1шт.

8

322651A1

RESERVOIR ASSY.

Components Not Serviced Separately

1шт.

9

H439303

CLIP

3шт.

10

442027A1

SECURING STRAP

Velcro

1шт.

11

442962A1

CLIP, WIRE

2шт.

12

417650A2

HARNESS

Cab/Front Door; Models With Lexan Front Door; Replaces 417650A1; Not Illustrated; See Figure 09-32

1шт.

Выбрано товаров: 14
