Запчасти Case 85XT (04-12) - HARNESS - CAB (OCT 21 2011 3:02PM) (04) - ELECTRICAL SYSTEMS

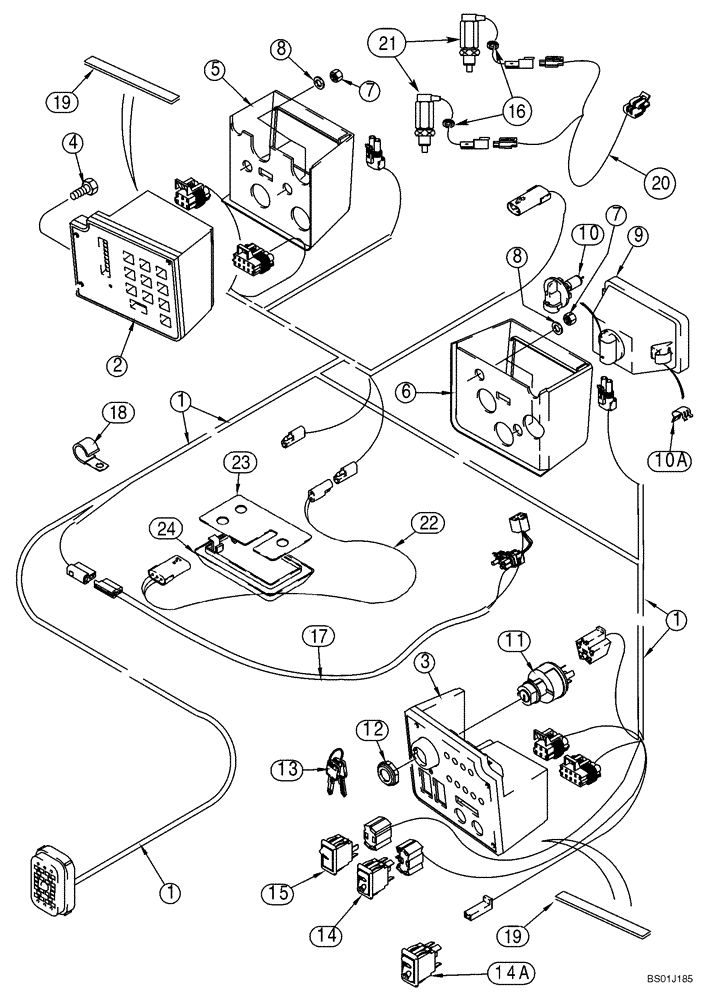

Схема запчастей Case 85XT - (04-12) - HARNESS - CAB (OCT 21 2011 3:02PM) (04) - ELECTRICAL SYSTEMS
1
11
1
8
6
1
9
14a
23
7
16
2
19
24
13
21
12
19
22
18
15
8
20
10
14
5
17
4
3
7
10a

Артикул

Название

Примечание

Количество

1

227762A5

HARNESS

Cab

1шт.

256340A1

CONNECTOR, ELEC

CONNECTOR 2-Prong Headlight Connector = (1) Of P/N 256340A1 & (2) Of Terminal P/N 221381A1

1шт.

258613A1

LOCK

2шт.

2

389971A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Left Hand; Replaces 189491A9

1шт.

389971A1R

REMAN-INSTR CLUSTER

85XT, ASN JAF0352234

1шт.

389971A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

189492A3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand

1шт.

3

189493A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Deluxe; Right Hand; Models With Automatic Engine Shutdown; See Figure 04-26

1шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

Replaces 614-6016

7шт.

5

199701A1

SUPPORT

Left Hand

1шт.

6

199702A1

SUPPORT

Right Hand

1шт.

7

832-41406

NUT,M6 x 1, Cl 8

M6

4шт.

8

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

9

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Incl. 10, 10A

2шт.

10

259702A1

BULB

1шт.

10a

259701A1

CLIP,ELECTRICAL

1шт.

282775A1

IGNITION SWITCH

Incl. 11, 12, 13

1шт.

11

NSS

NOT SOLD SEPARAT

Switch, Ignition

1шт.

12

A77314

NUT

1шт.

13

1964831C2

IGNITION KEY

Padded

1шт.

14

223836A1

LIGHT SWITCH

Lamp

1шт.

14a

230099A1

SWITCH

Lamp; Europe Only

1шт.

15

223838A1

CONTROL

Cold Start

1шт.

16

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

No Longer Used, Order 87530614

3шт.

16

87530614

GROMMET

3шт.

17

NSS

NOT SOLD SEPARAT

Harness; Wiper Motor; See Figure 04-16; If Equipped

1шт.

18

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

19

295026A1

SEAL

305 mm (12 in); Models With Deluxe Heater; Models With Air Conditioning

2шт.

20

321390A1

HARNESS

Interlock; Switch

1шт.

21

313329A1

SWITCH

Seat Bar, Interlock

2шт.

22

324882A1

HARNESS

Lamp; Models With Deluxe Heater; Models With Air Conditioning

1шт.

23

322783A1

HOLDER

Models With Deluxe Heater; Models With Air Conditioning

1шт.

24

325271A1

COURTESY LIGHT

DOME LIGHT Models With Deluxe Heater; Models With Air Conditioning

1шт.

Выбрано товаров: 33
