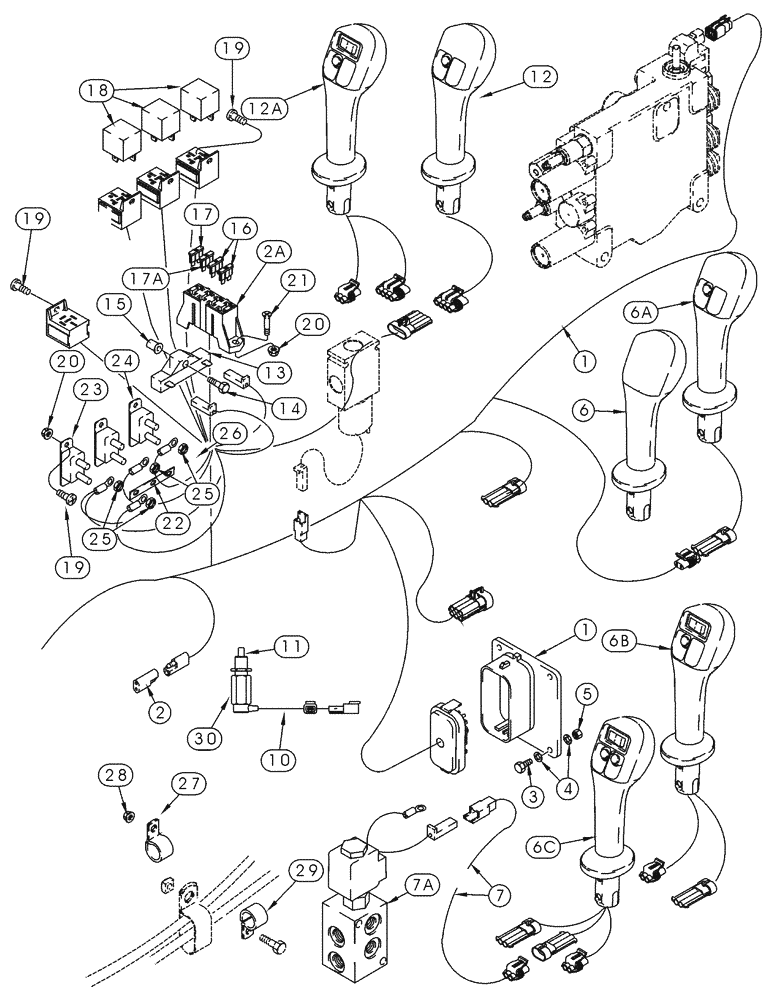

Запчасти Case 85XT (04-09) - HARNESS CHASSIS, FRONT, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
419622A1
HARNESS
Chassis, Includes: Ref. 2 and 2A
1шт.
2
L71879
DIODE ELEMENT,400V, 3A
1шт.
Part of harness P/N 419622A1
1шт.
2a
245435C1
FUSE HOLDER
1шт.
Part of harness P/N 419622A1
1шт.
3
614-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
2шт.
4
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
5
832-41406
NUT,M6 x 1, Cl 8
2шт.
6
235766A2
HANDLE
Right-Hand, Horn, See Figure 04-25
1шт.
6a
379500A1
HANDLE
Right-Hand, Horn, Turn Signal, See Figure 04-25
1шт.
6b
379501A1
HANDLE
Right Hand, Horn, Turn Signal, Ride Control, See Figure 04-25
1шт.
7
310838A1
HARNESS
Ride Control
1шт.
7a
308023A1
VALVE
Ride Control, See Figure 08-09
1шт.
9
242306A1
SWITCH
Operator Presence, See Page(s) 9-75, 9-87, Not Illustrated
1шт.
10
301405A1
CONNECTOR, ELEC
CONNECTOR Seat Harness To Sensor Switch
1шт.
11
280925A1
SWITCH
Interlock, Also Order Ref. 30
1шт.
Used with nut P/N 832-10416
1шт.
12
235765A2
HANDLE
Left-Hand, Brake, See Figure 04-26
1шт.
12a
235909A3
HANDLE
Left-Hand, Brake, High Flow, See Figure 04-26
1шт.
13
107558C1
RESISTOR
25 ohm
1шт.
14
190-104
SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"
No. 10 NF x 1-1/2
1шт.
15
D122634
ISOLATOR,12.7mm OD x 14.1mm L
1шт.
16
A149800
FUSE,10 Amp
10 amp
2шт.
17
A149802
FUSE
20 amp
1шт.
17a
A149803
FUSE,25 Amp
25 amp
1шт.
18
D128310
RELAY
30 amp
1шт.
19
840-1516
SCREW,Pan, M5 x 16mm, Cl 4.8
5шт.
20
825-5145
NUT,M5, Flg Ser
7шт.
21
840-1520
SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8
2шт.
22
245861C1
BAR
1шт.
23
303886A1
BREAKER
40 amp
2шт.
24
303884A1
BREAKER
15 amp
1шт.
26
247333A1
CAP
6шт.
27
A37179
CLIP
2шт.
28
825-5146
SERRATED NUT,M6, Flg Ser
2шт.
29
515-22270
CLAMP,1-1/16", Insul, 5/16" Bolt
1-1/16 ID
1шт.
Выбрано товаров: 38
