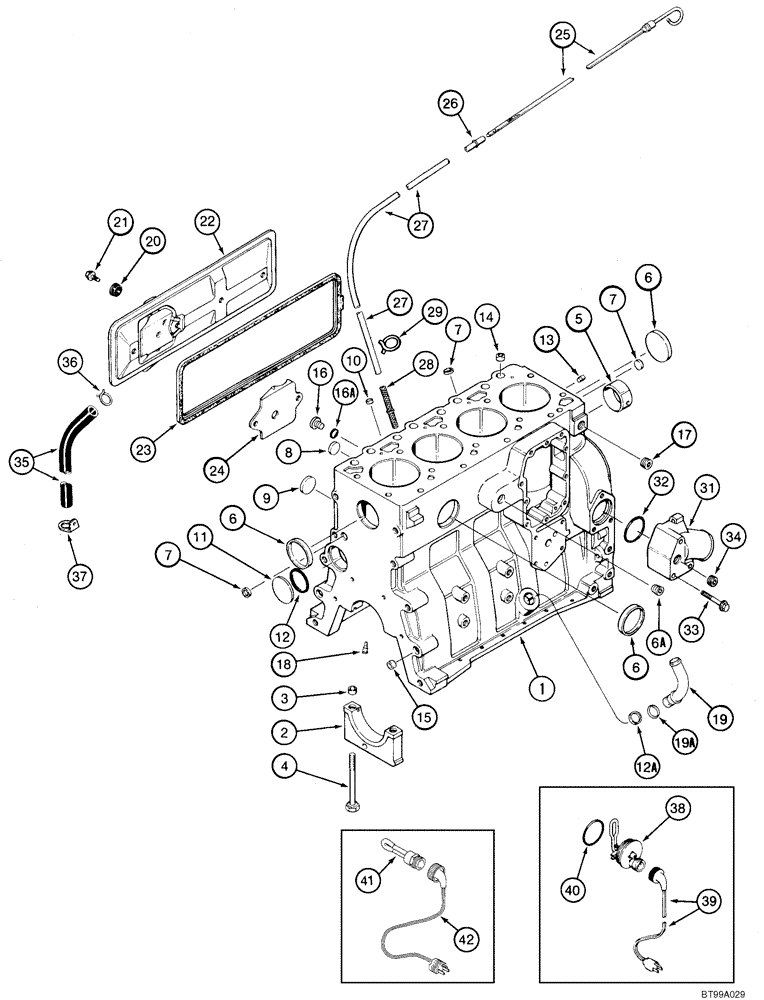

Запчасти Case 85XT (02-15) - CYLINDER BLOCK (Apr 19 2012 7:58AM) (02) - ENGINE

REF

INSTRUCTION

4-390 EMISSIONS CERTIFIED ENGINE

1шт.

326964A2

COMPLETE ENGINE; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Manifold; N.A. Only; For Service Order 377987A1

1шт.

377517A1R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Reman Engine For New P/N 326964A2, N.A. Only

1шт.

377517A1C

CORE-REPLACEMENT ENG

Return Number, N.A. Only

1шт.

377519A1R

REMAN-REPLACEMENT EN

COMPLETE ENGINE; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Manifold; N.A. Only

1шт.

377519A1C

CORE-REPLACEMENT ENG

Return Number

1шт.

326957A2

COMPLETE ENGINE; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Manifold; Europe Only; For Service Order 377987A1

1шт.

377987A1

BASIC ENGINE,4 Cylinders

Basic Service Engine; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner

1шт.

339851A1R

REMAN-BASIC ENGINE

Basic Service Engine; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner

1шт.

339851A1C

CORE-BASIC ENGINE

Return Number

1шт.

J933649

SHORT ENGINE

Short; Incl. Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

JR933649

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

JC933649

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

87444172

BLOCK ASSY.

Stripped; Incl. 2 - 8; Also Order J933220

1шт.

2

J936791

BEARING CAP

Incl. 3

5шт.

3

J900068

BEARING WASHER

18 mm OD

2шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

1шт.

6

A77782

PLUG

58 mm

3шт.

6a

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD; Oil Fill; Left Hand Side

2шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm

3шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

17a

J678921

PLUG

14 mm; Incl. 17B; Not Used In This Application

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17c

J932296

PLUG

Incl. 17D; Not Used In This Application

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

18

J937214

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

1шт.

19a

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J900267

SEAL

2шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J936186

COVER

Incl. 24

1шт.

23

J283767

GASKET,7.4mm Thk

Cover

1шт.

24

J907586

BAFFLE

1шт.

25

J933333

DIPSTICK

1шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

27

J905801

TUBE

1шт.

28

A77645

TUBE

1шт.

29

86637701

HOSE CLAMP,12.45mm - 12.95mm

1/2; Replaces 214-1308

2шт.

31

J934877

HYD CONNECTOR

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J928989

CLIP

1шт.

37a

J905401

PLUG

35 mm; Oil Filler; Not Illustrated

1шт.

REF

INSTRUCTION

120 VOLT ENGINE BLOCK HEATER

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 38 - 40; Install Ref. 38 In Place Of Ref. 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6 Plug

1шт.

39

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

40

J910517

O-RING

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl. 41, 42; Install Ref. 41 In Place Of Ref. 6A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6A Plug

1шт.

42

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

REF

INSTRUCTION

240 VOLT ENGINE BLOCK HEATER; EUROPE ONLY

1шт.

124340A1

KIT

Engine Block Heater, 240V - 750W; Incl. 38 - 40; Install Ref 38 In Place Of Ref 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref 6 Plug

1шт.

39

J905114

ELECTRIC CABLE

240V - 750W, 1829 mm (72 in)

1шт.

40

J910517

O-RING

1шт.

309652A1

KIT

Engine Block Heater, 240V - 750W; Incl. 41, 42; Install Ref 41 In Place Of Ref 6A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref 6A Plug

1шт.

42

J905114

ELECTRIC CABLE

240V - 750W, 1829 mm (72 in)

1шт.
