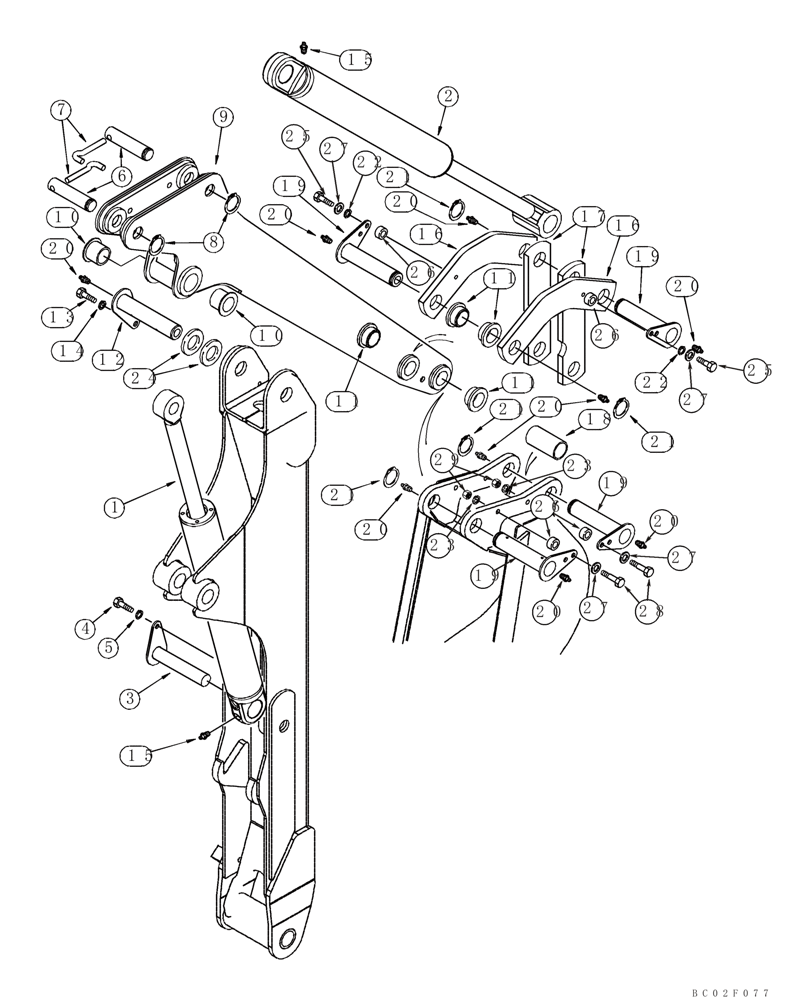

Запчасти Case 85XT (09-44) - BACKHOE - DIPPER (NORTH AMERICA) (09) - CHASSIS

REF

INSTRUCTION

D125 BACKHOE

1шт.

1

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

76 ID x 498 mm strk; Dipper; See Figure 08-32

1шт.

2

402216A1

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 552.4mm Stroke

70 ID x 559 mm strk; Bucket; See Figure 08-33

1шт.

3

H674119

PIN

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

H437349

PIN,31.8mm OD x 136mm L

2шт.

7

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

2шт.

8

103-16125

SNAP RING,#125, Ext

2шт.

H674676

DIPPER

Incl. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Dipper

1шт.

10

H437301

BUSHING,38.35mm ID x 62mm OD x 40mm L

2шт.

11

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

4шт.

12

H674113

PIN,38.15mm OD x 187mm L

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

16

H437315

LARGE PLATE

PLATE, LARGE

2шт.

17

H437313

LARGE PLATE

PLATE, LARGE

2шт.

18

H437316

SPACER

1шт.

19

349180A1

PIN,38.15mm OD x 177mm L

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

10шт.

21

100-16150

SNAP RING,#150, Ext

4шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

H426437

SPACER

1-3шт.

25

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

26

349192A1

SPACER

11-7/64 ID; 6 mm

4шт.

27

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

28

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

3/8 x 1-3/4; 8

2шт.

29

231-4146

NUT,3/8"-16, GB

2шт.
