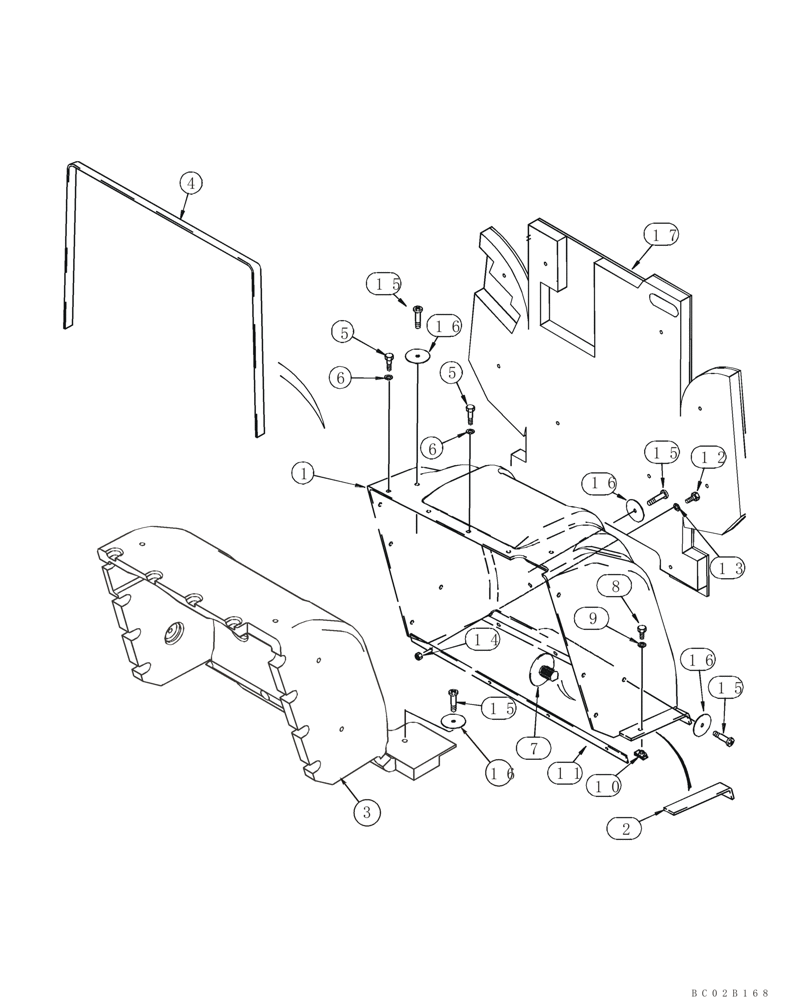

Запчасти Case 85XT (09-30) - CANOPY, ROPS - HEAT SHIELD (09) - CHASSIS

1

426114A1

SHIELD

Heat; Tan

1шт.

2

313324A1

SEAL

227 mm (9 in); Heat Shield; Models With Deluxe Heater

2шт.

3

335015A2

INSULATOR

Heat Shield

1шт.

4

250705A2

BAND

1650 mm

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

8шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

9

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

10

833-40006

SPRING NUT,M6, U

6 mm; Replaces 127367A1

2шт.

11

247118A1

BAND

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

832-41306

NUT,M6 x 1, Cl 10

4шт.

15

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia; Push-In

11шт.

16

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

11шт.

17

313457A1

INSULATOR

Europe Only

1шт.
