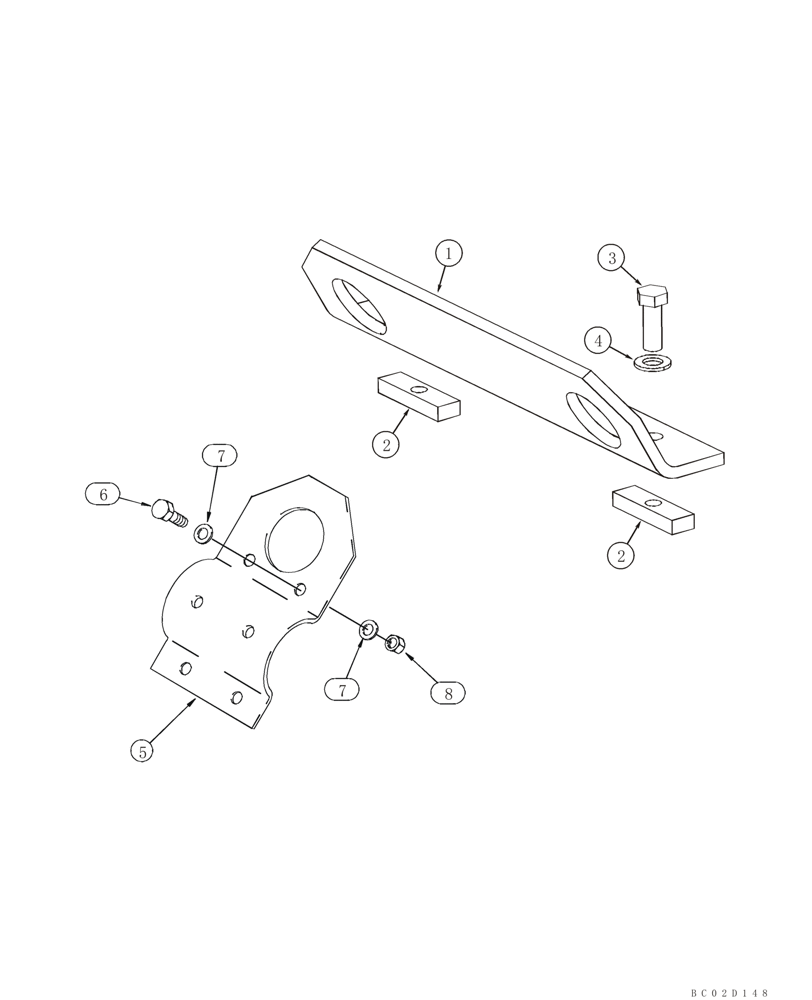

Запчасти Case 85XT (09-28) - CANOPY, ROPS - LIFT HOOK (09) - CHASSIS

1

328709A1

PLATE

Lift Hook; Order Decals Separately

1шт.

2

327550A1

BAR

2шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

4

495-11081

WASHER,3/4", SAE

Rear

2шт.

5

315937A1

WELDABLE LUG

Rear

4шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

8

829-1412

NUT,M12, Cl 10.9

8шт.
