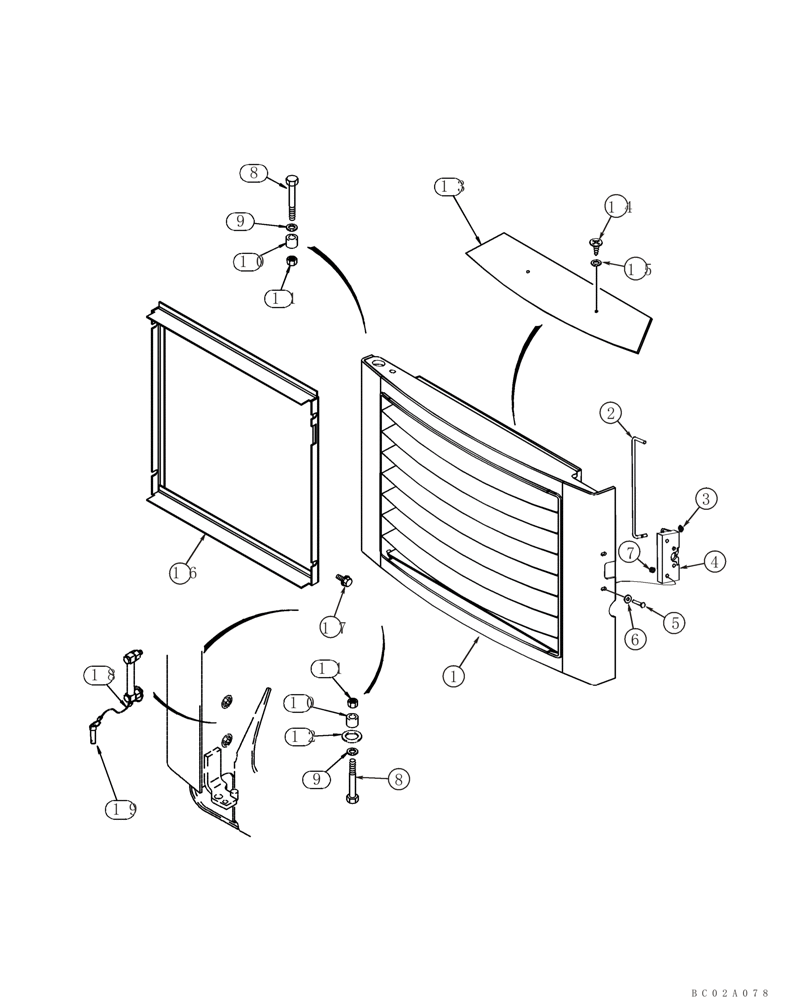

Запчасти Case 85XT (09-18) - DOOR, REAR - WITH SOUNDPROOFING (EUROPE) (09) - CHASSIS

1

434582A1

DOOR; Order From WholeGoods

1шт.

2

434565A1

ROD

Latch Pull

1шт.

3

380751A1

NUT

Push

1шт.

4

R55002

LATCH

1шт.

5

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

7

832-41406

NUT,M6 x 1, Cl 8

2шт.

8

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

2шт.

11

832-41316

NUT,M16 x 2, Cl 10

2шт.

13

307942A1

INSULATOR

7шт.

14

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In

14шт.

15

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

14шт.

16

280672A2

DEFLECTOR

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

18

297245A1

CABLE

Door Stop; Incl. H439276, Ref 19

1шт.

19

H439276

PIN,12mm OD x 50mm L

1шт.
