Запчасти Case 85XT (09-09) - CHASSIS (09) - CHASSIS

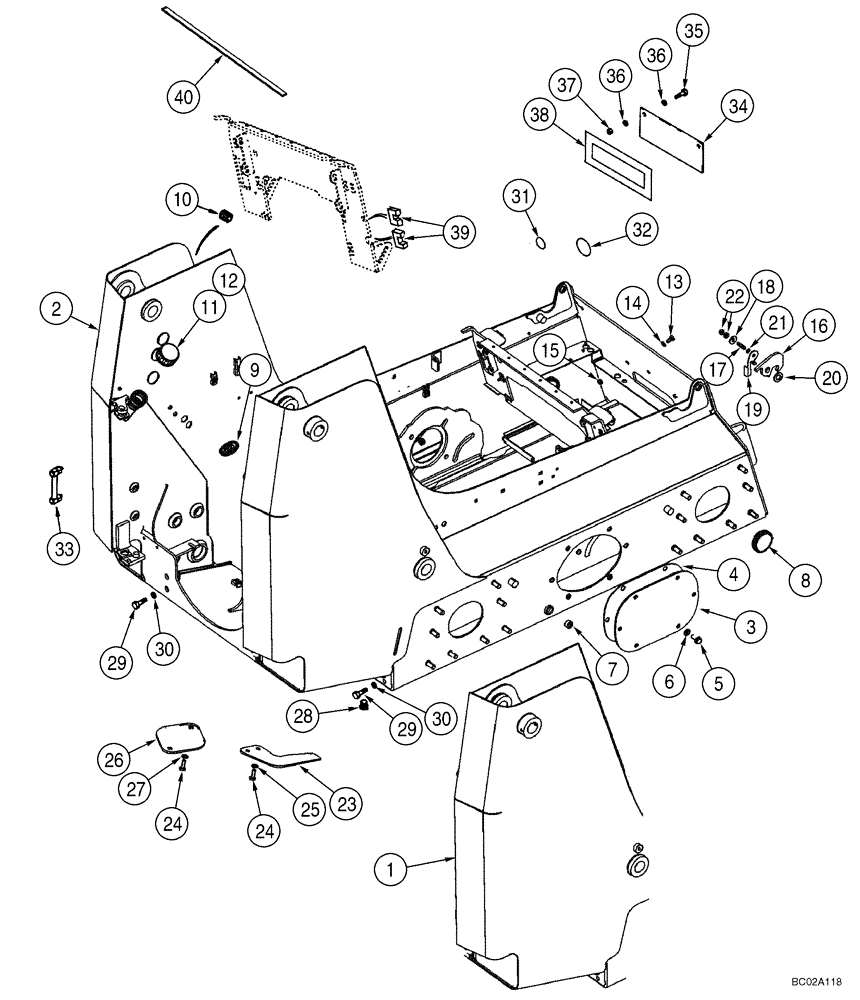

Схема запчастей Case 85XT - (09-09) - CHASSIS (09) - CHASSIS
30
40
28
12
38
34
1
19
25
20
30
29
23
26
24
3
6
5
33
16
11
2
8
21
39
13
36
35
14
31
29
24
36
4
9
18
10
7
32
22
27
15
37
17

Артикул

Название

Примечание

Количество

1

427294A1

FRAME; Without Tie Down Hitch; Order From WholeGoods; If Used

1шт.

2

427294A2

FRAME; With Tie Down Hitch; Order From WholeGoods; If Used

1шт.

3

139754A1

LARGE PLATE

PLATE, LARGE

2шт.

4

195402A2

GASKET,3.2mm Thk

Models With Chassis 389834A1, 389834A2

2шт.

5

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

6

254547A1

PACKING RING

Use Wtih 195402A2

12шт.

7

87016916

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

2шт.

8

220061A2

PLUG

3 in; Axle Access

4шт.

9

H436887

CAP

Fuel Filler Cap

1шт.

10

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

Hydraulic Reservoir

1шт.

11

257448A1

CAP

Oil Filler; Incl. 14

1шт.

12

292259A1

SEAL

Filler Cap; Not Illustrated

1шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

Optional Equipment Mounting

8шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

15

832-41310

NUT,M10 x 1.5, Cl 10

8шт.

16

294910A1

LATCH

ROPS

1шт.

17

294943A1

STUD

1шт.

18

294967A1

WASHER

1шт.

19

294911A2

HOOK

1шт.

20

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

21

278332A1

SPRING WASHER

1шт.

22

100016

NUT,M10 x 1.5, Cl 8

2шт.

23

189422A1

COVER

2шт.

24

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

25

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

26

247609A1

COVER

3шт.

27

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

28

86625135

PLUG,1" - 11-1/2 NPT

1шт.

29

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

2шт.

30

232287A1

PACKING RING

2шт.

31

299274A2

COVER,35mm OD

25 mm (1 in); Replaces 299274A1; Models With Heater; See Figure 09-36

1шт.

32

311212A1

COVER

70 mm dia; Models With Deluxe Heater

1шт.

33

H435669

GAUGE

Sight

1шт.

34

242094A1

PLATE ASSY.

Models With Front Door

1шт.

35

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

36

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

37

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

38

313322A1

SEAL

Cover Plate; Models With Deluxe Heater

1шт.

39

313231A1

BAND

30 mm (1-1/4 inch); Cable; Models With Deluxe Heater

2шт.

40

313321A1

SEAL

Heel Plate; Models With Deluxe Heater

1шт.

277450A1

STUD,M16 x 2 x 40mm, Cl 10.9

Axle Studs

32шт.

87422323

PLATE

Rear Tie Down Brackets

2шт.
