Запчасти Case 85XT (08-17) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (Dec 22 2009 4:49PM) (08) - HYDRAULICS

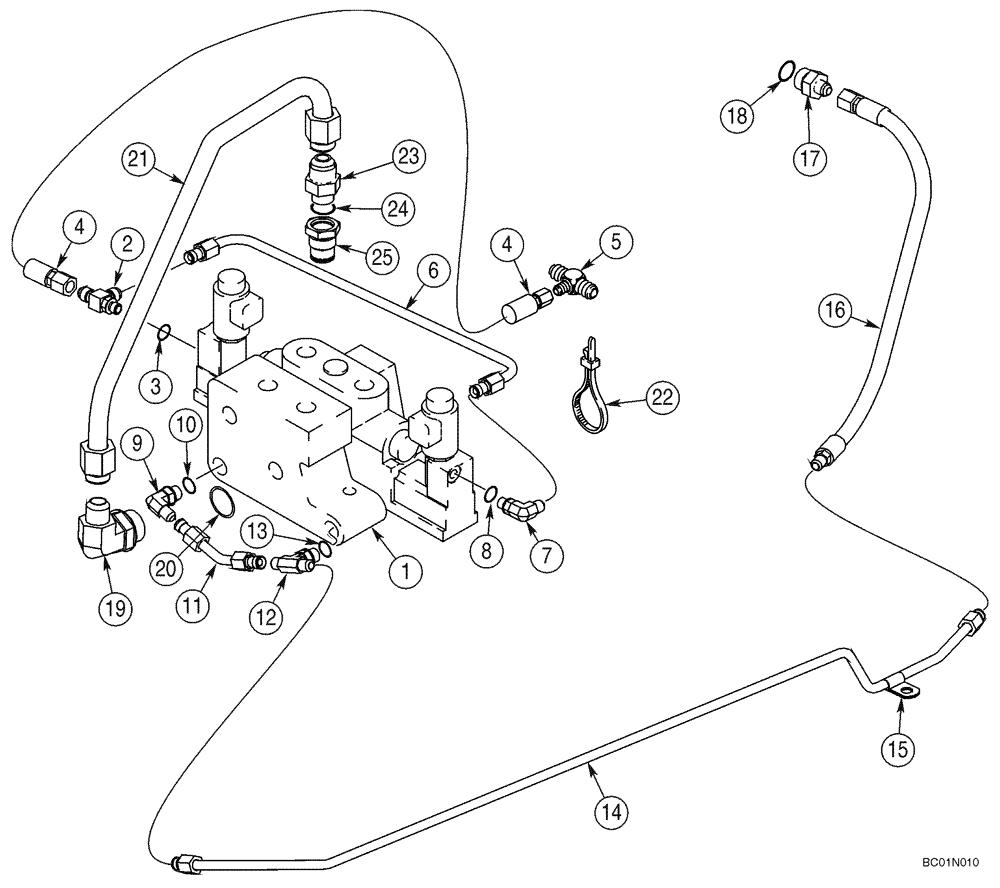

Схема запчастей Case 85XT - (08-17) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (Dec 22 2009 4:49PM) (08) - HYDRAULICS
14
11
9
23
19
1
7
25
4
12
8
13
5
17
21
6
15
24
22
4
18
16
20
2
10
3

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CHARGE PRESSURE AND PILOT RELIEF LINES

1шт.

1

227084A1

VALVE

Control; See Figure 08-20

1шт.

2

255403A1

TEE

Incl. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

416706A1

HOSE ASSY.

433 mm (17 in); Pilot Return

1шт.

5

218-1581

TEE,37º, 3/4"-16 x 7/16"-20, Br

For Attaching Parts; See Figure 08-19, Ref 2, 7

1шт.

6

254835A4

TUBE,9.53 mm OD, 406, 71 mm Length

Pilot Relief Jumper

1шт.

7

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

236528A4

TUBE,9.53 mm OD

Charge Jumper

1шт.

12

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

416407A1

TUBE

Charge Pressure

1шт.

15

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

16

416423A1

HOSE ASSY.

540 mm (21-1/4 in)

1шт.

17

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

416154A2

TUBE

Power Beyond

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

23

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

417368A1

SLEEVE

1шт.
