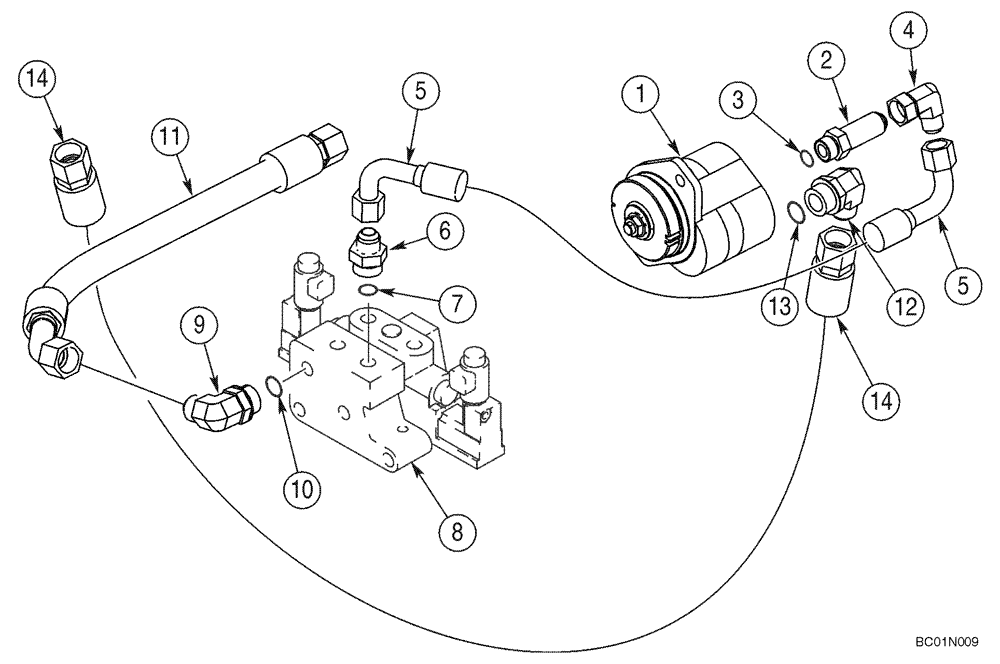

Запчасти Case 85XT (08-16) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

SUPPLY AND RETURN TO PUMP

1шт.

1

323427A1

PUMP, HYDRAULIC

See Figure 08-15, REF 1

1шт.

2

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x Or; Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

5

303841A2

HOSE ASSY.

660 mm (26 in)

1шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

227084A1

VALVE

Control; See Figure 08-20

1шт.

9

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

416132A1

HOSE ASSY.

640 mm (25-3/16 in); Return Filter To Valve

1шт.

12

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

430678A1

HOSE ASSY.

1375 mm (54-1/8 in)

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Not Illustrated

2шт.

16

238616A1

HARNESS

See Figure 04-08; Not Illustrated

1шт.
