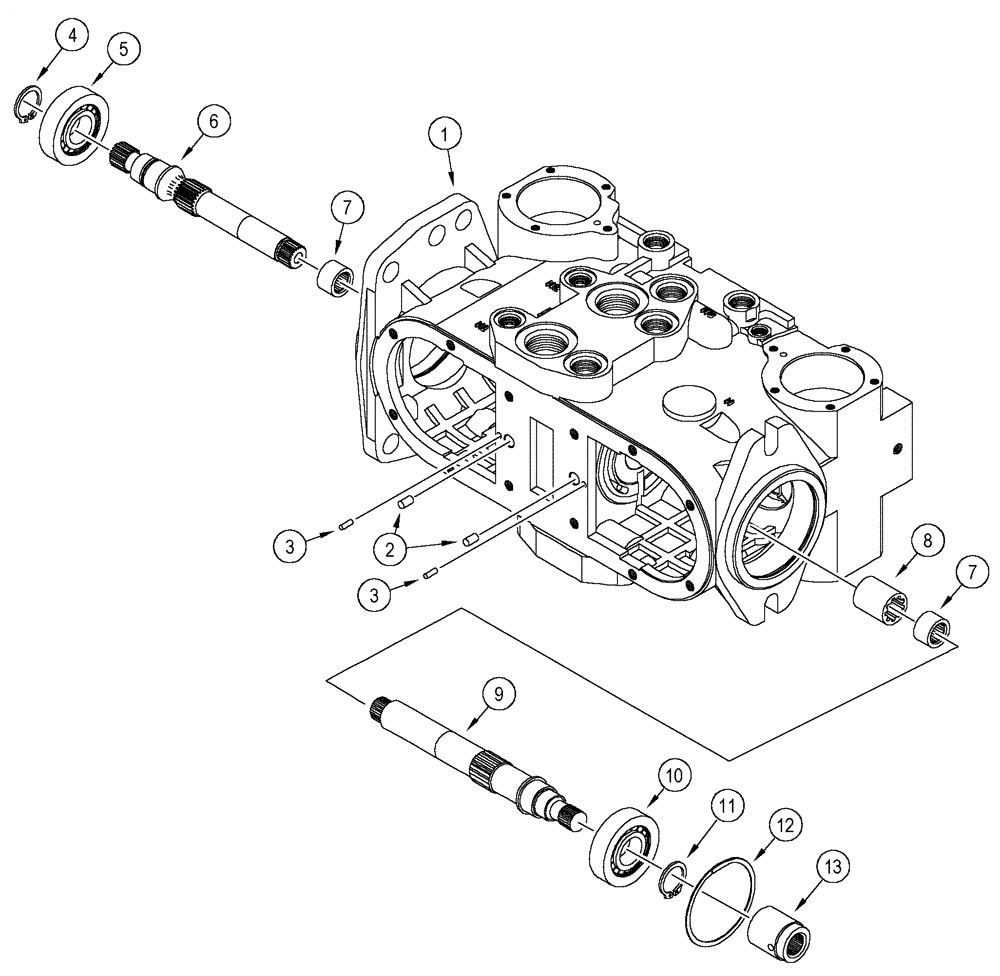

Запчасти Case 85XT (06-11) - PUMP, TANDEM, HOUSING (06) - POWER TRAIN

REF

INSTRUCTION

PUMP Tandem, See Page(s) 6-15, Consists Of: 6-17 - 6-31

1шт.

1

291122A1

HOUSING

1шт.

2

F23124

AXLE PIN

Large

2шт.

3

233006A1

SPLIT PIN/SAFETY PIN

Small

2шт.

4

100-11137

SNAP RING,#137, Ext

1шт.

5

259484A1

BEARING, ROLLER

1шт.

6

233017A1

SHAFT

19T

1шт.

7

132391A1

BEARING, NEEDLE

2шт.

8

233019A1

COUPLING

22T

1шт.

9

259483A1

SHAFT

13T

1шт.

10

259485A1

BEARING, BALL

1шт.

11

100-11137

SNAP RING,#137, Ext

1шт.

12

259486A1

RING

1шт.

13

259494A1

COUPLING

13T

1шт.
