(85XT) - CASE SKID STEER LOADER (9/97-12/05)
/
(06) - POWER TRAIN
/

(06-09) - FILTER ASSY MOUNTING, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715-

Запчасти Case 85XT (06-09) - FILTER ASSY MOUNTING, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (06) - POWER TRAIN

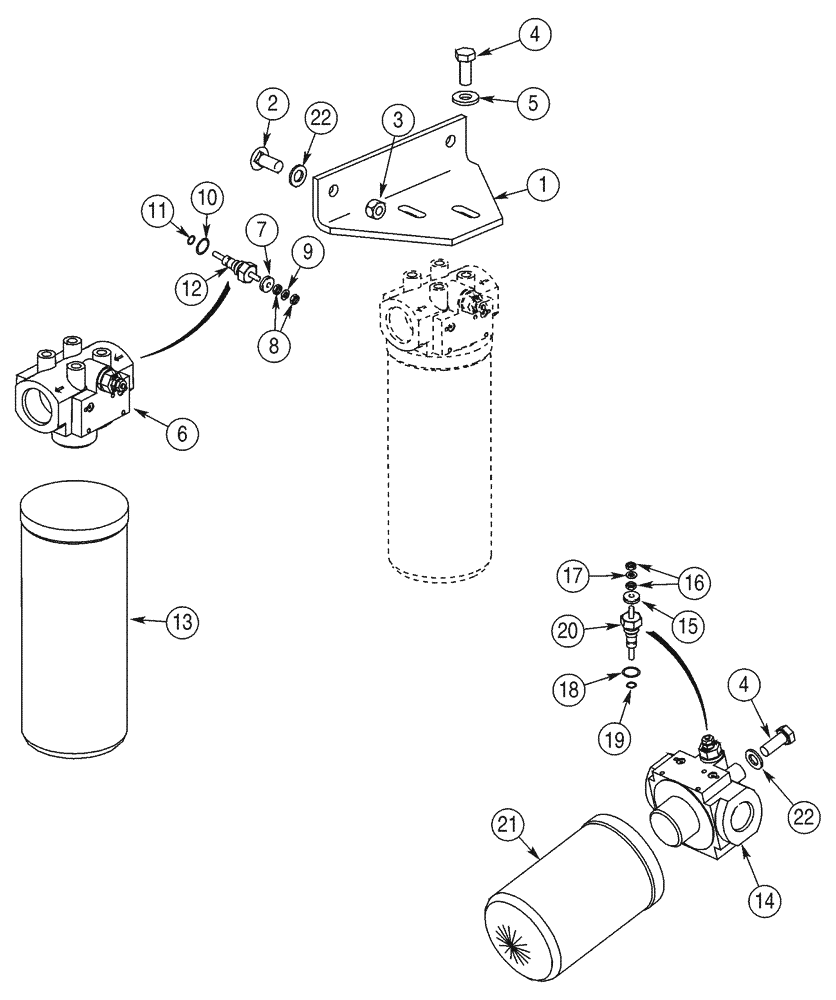

Схема запчастей Case 85XT - (06-09) - FILTER ASSY MOUNTING, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (06) - POWER TRAIN
4
22
4
18
14
20
9
1
5
2
7
13
3
19
10
21
22
16
6
11
15
17
12
8

№

Артикул

Название

Примечание

Количество

1

247237A3

SUPPORT

1шт.

2

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

222756A2

FILTER ASSY

Return, Consists Of: Ref. 6 - 13

1шт.

6

222758A1

HEAD

Includes: N13268

1шт.

Part of filter assy. P/N 222756A2

1шт.

N13268

PRESSURE SWITCH

Consists Of: Ref. 7 - 12

1шт.

Part of head P/N 222758A1

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER Special, Red, White

1шт.

Part of filter assy. P/N 222756A2

1шт.

8

129-667

NUT,#10-32, LH

2шт.

Part of filter assy. P/N 222756A2

1шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

Part of filter assy. P/N 222756A2

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

Part of filter assy. P/N 222756A2

1шт.

12

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

Part of filter assy. P/N 222756A2

1шт.

13

N9025

HYDRAULIC OIL FILTER

1шт.

Part of filter assy. P/N 222756A2

1шт.

222757A1

FILTER ASSY

Charge, Consists Of: Ref. 14 - 21

1шт.

14

226664A1

HEAD

Includes: N13268

1шт.

Part of filter assy. P/N 222757A1

1шт.

N13268

PRESSURE SWITCH

Consists Of: Ref. 15 - 20

1шт.

Part of head P/N 226664A1

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER Special, Red, White

1шт.

Part of indicator P/N N13268

1шт.

Part of filter assy. P/N 222757A1

1шт.

16

129-667

NUT,#10-32, LH

2шт.

Part of indicator P/N N13268

1шт.

Part of filter assy. P/N 222757A1

1шт.

17

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

Part of indicator P/N N13268

1шт.

Part of filter assy. P/N 222757A1

1шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

Part of indicator P/N N13268

1шт.

Part of filter assy. P/N 222757A1

1шт.

20

NSS

NOT SOLD SEPARAT

INDICATOR

1шт.

Part of indicator P/N N13268

1шт.

Part of filter assy. P/N 222757A1

1шт.

21

222759A1

HYDRAULIC OIL FILTER

1шт.

Part of filter assy. P/N 222757A1

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of filter assy. P/N 222756A2

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of indicator P/N N13268

1шт.

Part of filter assy. P/N 222757A1

1шт.
