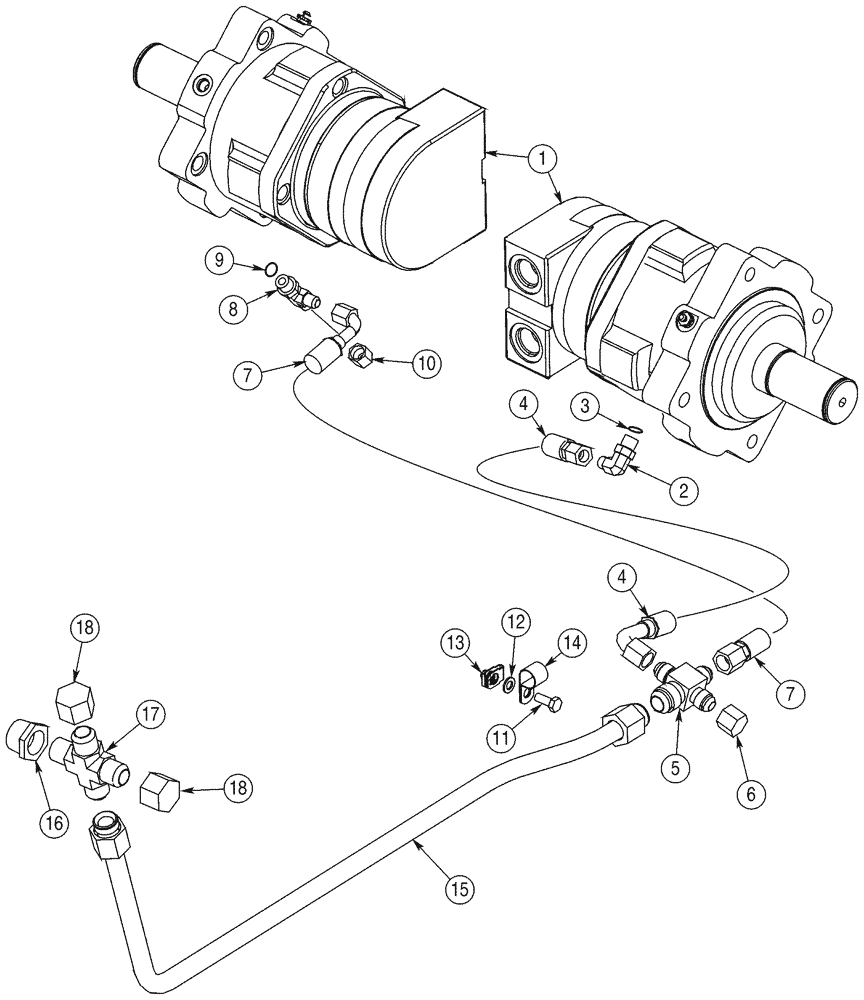

Запчасти Case 85XT (06-04) - HYDROSTATICS CASE DRAIN, NORTH AMERICAN MODELS JAF0352234-, EUROPEAN MODELS JAF0352715- (06) - POWER TRAIN

1

349157A2

MOTOR, HYDRAULIC

See Figure 06-18

2шт.

1

87703266

HYDRAULIC MOTOR

Replaces 349157A2; See Fig 06-18A

2шт.

1

359619A2

BRAKE ASSY.

Replaces 349157A2 - Order with 87703266

2шт.

1

87703266R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

1

87703266C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x Adj Or, Includes: Ref. 3

1шт.

4

419061A1

HOSE ASSY.

Motor Case Drain, Right-Hand, 710 mm (28 in.)

1шт.

5

418507A1

FITTING

1шт.

6

218-755

CAP,37 Degree, 3/4"-16

1шт.

7

419060A1

HOSE ASSY.

Motor Case Drain, Left-Hand, 405 mm (16 in.)

1шт.

8

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 9

1шт.

10

218-754

CAP,37 Degree, 9/16"-18

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1.6 mm

1шт.

13

122158A1

NUT,M8, U

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

15

419093A1

TUBE

Case Drain To Tank

1шт.

16

221-1604

REDUCER,Hex, 1" x 3/4" NPT

1 x 3/4

1шт.

17

306389A1

CROSS

1шт.

18

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of fitting P/N 218-5243

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.
