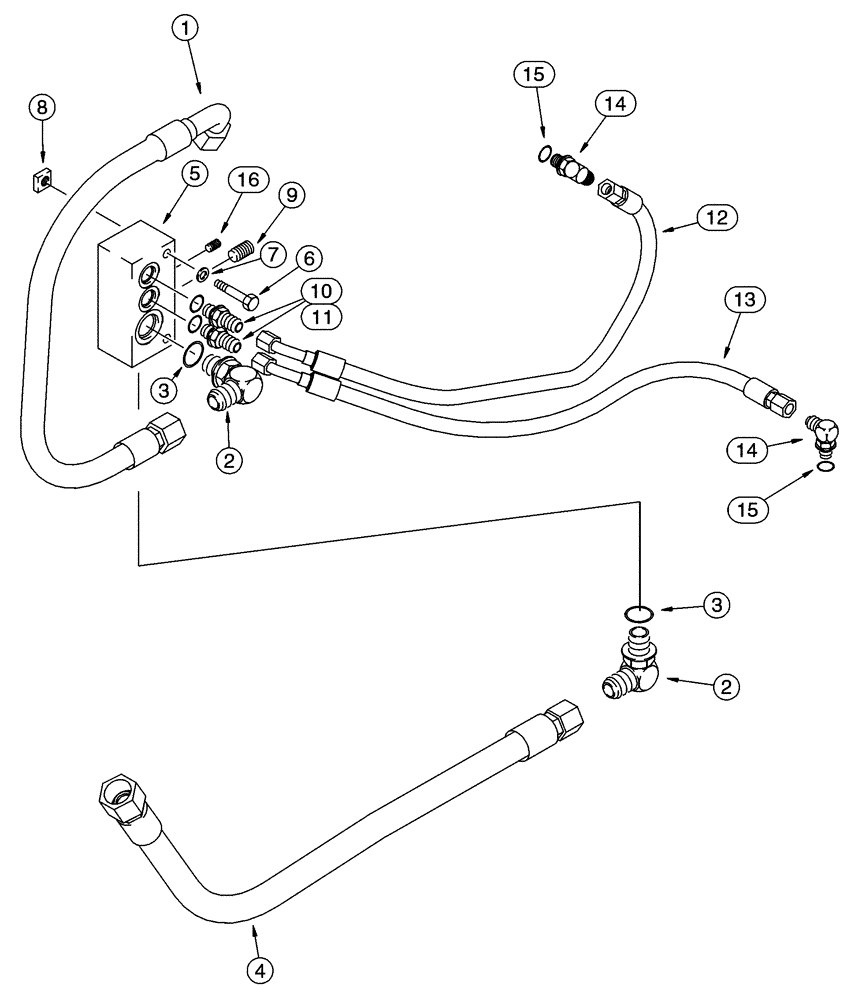

Запчасти Case 85XT (06-03) - HYDROSTATICS MANIFOLDS, NORTH AMERICAN MODELS -JAF0352233, EUROPEAN MODELS -JAF0352714 (06) - POWER TRAIN

1

247155A1

HOSE ASSY.

700 mm (27-5/8 in.), For Attaching Parts, See Page 6-3, Ref. 12

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 12

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

220287A2

HOSE ASSY.

850 mm (33-1/2 in.), For Attaching Parts, See Page 6-3, Ref. 6

1шт.

5

233228A2

MANIFOLD

Replaces: 233228A1

1шт.

5a

214389

PLUG,3/4" - 16 ORB

Not Illustrated

1шт.

6

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

M8 x 65

2шт.

7

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1.6 mm

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

9

217-437

PLUG,Hex Soc, 1/2" - 14 NPTF

1/2 PT, If Used

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

12

276649A2

HOSE ASSY.

750 mm (29-5/8 in.)

1шт.

Part of elbow P/N 218-5108

1шт.

13

247200A1

HOSE ASSY.

600 mm (23-5/8 in.)

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x Adj Or, Includes: Ref. 15

2шт.

16

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

If used

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in., Not Illustrated

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of elbow P/N 218-5105

1шт.
