Запчасти Case 85XT (04-32) - MOUNTING LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS

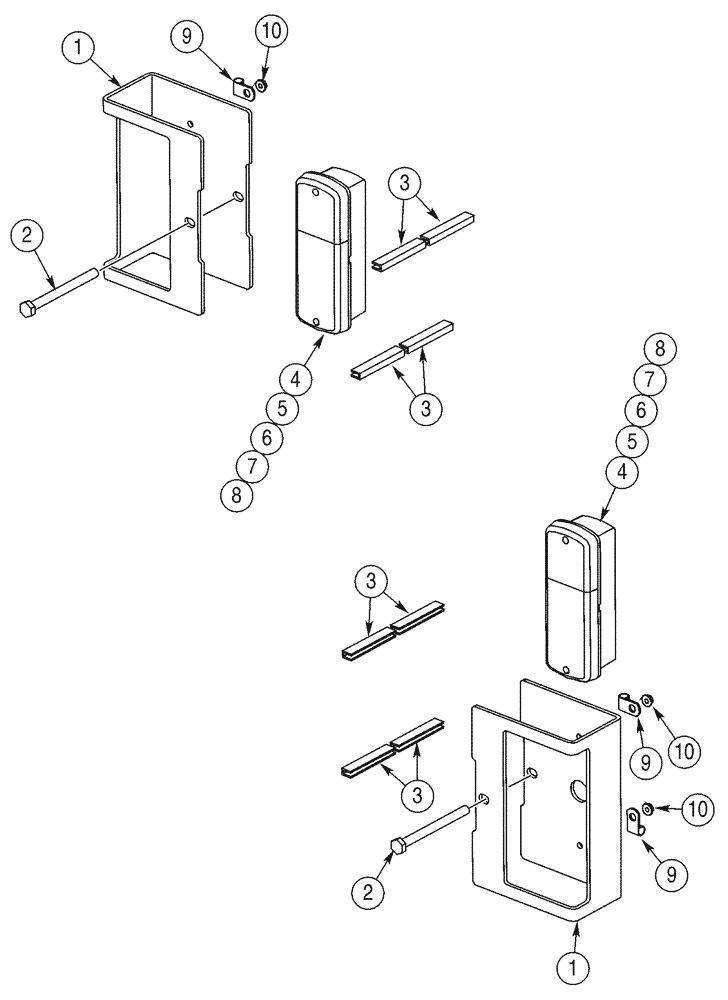

Схема запчастей Case 85XT - (04-32) - MOUNTING LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS
3
5
4
7
10
9
8
7
2
5
9
3
2
1
8
1
6
3
4
10
6
10
9
3

Артикул

Название

Примечание

Количество

1

367573A1

SUPPORT

2шт.

2

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

3

D55218

SEAL, GLASS,76mm L

76 mm (3 in.), Cut From F42827

10шт.

4

177239A2

LAMP, TAIL

LIGHT, TAIL Combination, Includes: Ref. 5 - 7

2шт.

5

187140A1

LENS

1шт.

Part of tail light P/N 177239A2

1шт.

6

3131227R1

BULB,P25-1, 12V, 21W

Turn Signal

1шт.

Part of tail light P/N 177239A2

1шт.

7

3131234R1

BULB,P25-2, 12V, 5W

Stop and Tail

1шт.

Part of tail light P/N 177239A2

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

10

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

Выбрано товаров: 13
