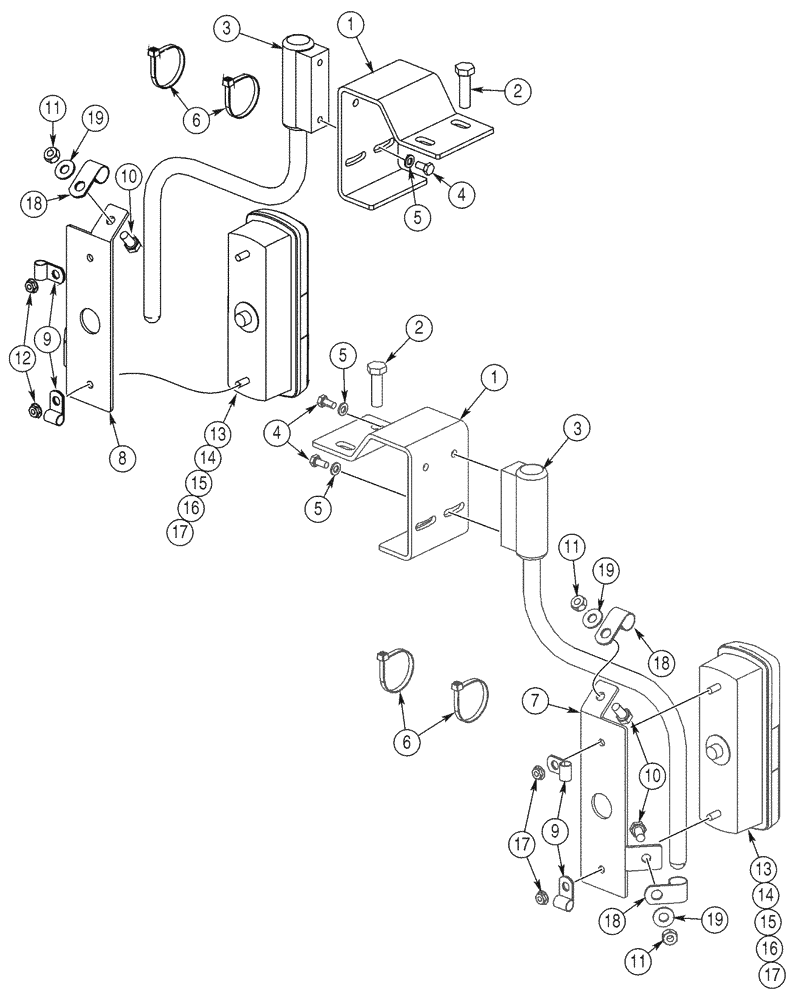

Запчасти Case 85XT (04-31) - MOUNTING LAMP ASSY, COMBINATION, FRONT (04) - ELECTRICAL SYSTEMS

1

308649A1

SUPPORT

2шт.

2

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

3

310860A1

SUPPORT

Mounting

2шт.

4

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

7

308570A1

SUPPORT

1шт.

8

308571A1

SUPPORT

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

13

233152A2

LIGHT

Combination, Includes: Ref. 14 - 16

2шт.

14

282074A1

LENS

1шт.

Part of tail light P/N 233152A2

1шт.

15

3131227R1

BULB,P25-1, 12V, 21W

Turn Signal

1шт.

Part of tail light P/N 233152A2

1шт.

16

71421

BULB,R5W, 12V, 5W

Position

1шт.

Part of tail light P/N 233152A2

1шт.

17

277904A1

ELEC CONNECTOR,Female, 4 Pin

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
