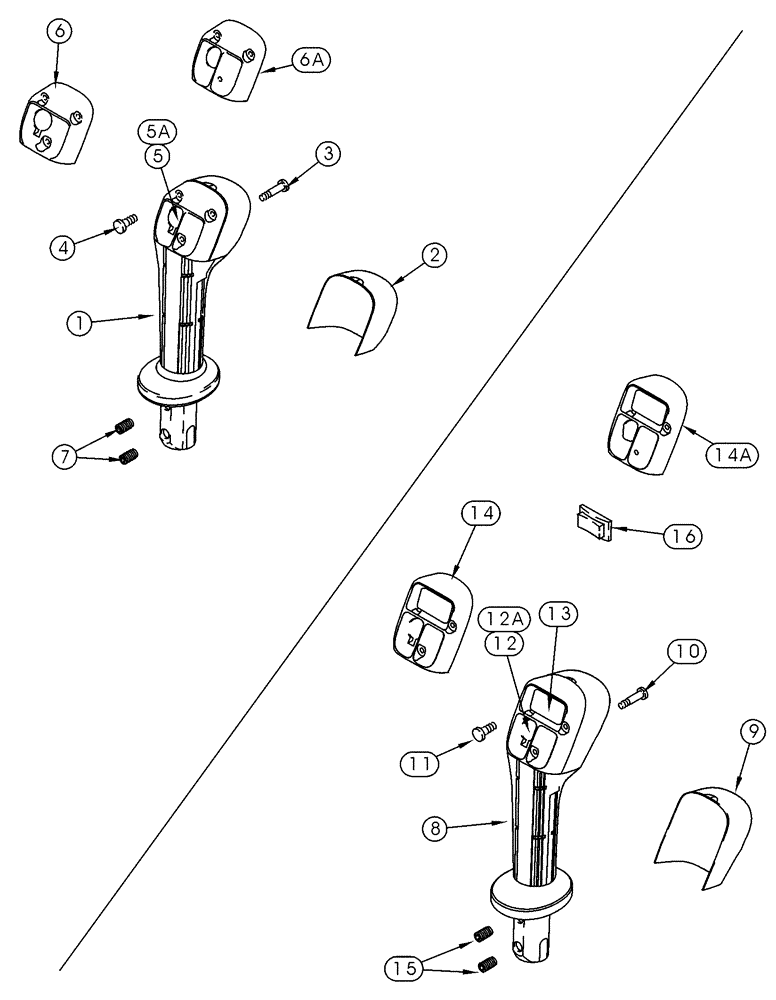

Запчасти Case 85XT (04-26) - CONTROLS, LEFT HAND - HANDLE, SINGLE SWITCH (04) - ELECTRICAL SYSTEMS

235765A2

HANDLE

Left-Hand, Single Switch, Consists Of: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HANDLE Control

1шт.

2

291792A1

CAP

1шт.

3

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

4

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

5

291800A1

SWITCH

Brake, No Longer Available, Order Ref. 5A, 6A

1шт.

5a

303892A1

SWITCH

Brake

1шт.

6

291795A1

PLASTIC PLATE

No Longer Available, Order Ref. 6A

1шт.

6a

291795A2

PLASTIC PLATE

1шт.

7

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

235909A3

HANDLE

Left-Hand, Two-Switch, Consists Of: Ref. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

HANDLE Control, Two-Switch

1шт.

9

291793A1

CAP

Two-Switch

1шт.

10

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8, Two-Switch

1шт.

11

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8, Two-Switch

3шт.

12

291800A1

SWITCH

Brake, Two-Switch, No Longer Available, Order Ref. 12A, 14A

1шт.

12a

303892A1

SWITCH

Brake, Two-Switch

1шт.

13

291804A1

SWITCH

High Flow, Two-Switch

1шт.

14

291798A1

PLASTIC PLATE

Two-Switch, No Longer Available, Order Ref. 14A

1шт.

14a

291798A2

PLASTIC PLATE

Two-Switch

1шт.

15

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8, Two-Switch

2шт.

16

303893A1

BOOT

Rocker Switch, Two-Switch

1шт.
