Запчасти Case 85XT (04-13) - HARNESS CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS

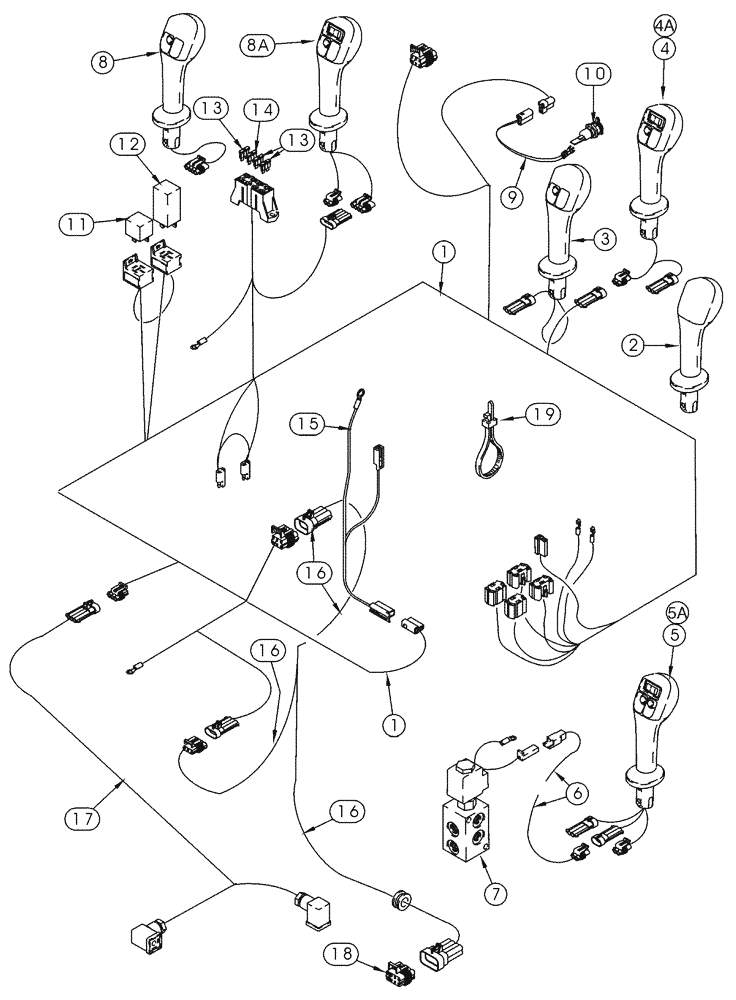

Схема запчастей Case 85XT - (04-13) - HARNESS CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS
8
18
11
5a
6
4
12
8a
4a
16
19
15
16
9
1
3
16
2
14
5
13
17
10
1
13
7

Артикул

Название

Примечание

Количество

1

230101A3

HARNESS

Chassis Options, For Models With Rotating Beacons, Order 1A

1шт.

1

230101A6

HARNESS

Chassis Options, Replaces: 230101A5, If Used

1шт.

1

377812A1

HARNESS

Chassis Options, With Flasher Connectors, If Used

1шт.

1

400180A1

HARNESS

Chassis Options, With Coupler Timer, If Used

1шт.

2

235763A1

HANDLE

Left-Hand, No Switches

1шт.

3

235766A2

HANDLE

Right-Hand, Horn, See Figure 04-25

1шт.

4

233436A2

HANDLE

Right-Hand, Horn, Turn Signal, See Figure 04-25, If Used

1шт.

4a

379500A1

HANDLE

Right-Hand, Horn, Turn Signal, See Figure 04-25, If Used

1шт.

5

308598A1

HANDLE

Right-Hand, Horn, Turn Signal, Ride Control, See Figure 04-25, If Used

1шт.

5a

379501A1

HANDLE

Right-Hand, Horn, Turn Signal, Ride Control, See Figure 04-25, If Used

1шт.

6

310838A1

HARNESS

Ride Control

1шт.

7

308023A1

VALVE

Ride Control, See Figure 08-09

1шт.

8

235765A2

HANDLE

Left-Hand, Brake, See Figure 04-26

1шт.

8a

235909A3

HANDLE

Left-Hand, Brake, High Flow, See Figure 04-26

1шт.

9

276912A1

HARNESS

Accessory Outlet

1шт.

10

142211A1

SOCKET

1шт.

11

D128310

RELAY

Accessory Power, 30 amp

1шт.

12

D147166

FLASHER UNIT

Hazard, If Equipped

1шт.

13

A149800

FUSE,10 Amp

10 amp

3шт.

14

A149803

FUSE,25 Amp

25 amp

1шт.

15

259347A1

HARNESS

Hydraulic Coupler, If Equipped, See Figure 08-11, Ref. 43; 08-12, Ref. 39

1шт.

16

244893A1

HARNESS

Front Auxiliary Controls, If Equipped

1шт.

16

426764A1

HARNESS

Front Auxiliary Controls, N.A. only, JAF0352234-, Europe Only, JAF0352715-, See Figure 04-22

1шт.

17

238616A1

HARNESS

High Flow, Gear, If Equipped, See Figure 08-33

1шт.

18

256350A1

CONNECTOR, ELEC

CONNECTOR If Equipped, See Note

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

1шт.

Note: Required For Attachments That Will Mount To The Front Auxiliary Controls Harness, Ref. 16 Shown Above.

1шт.
