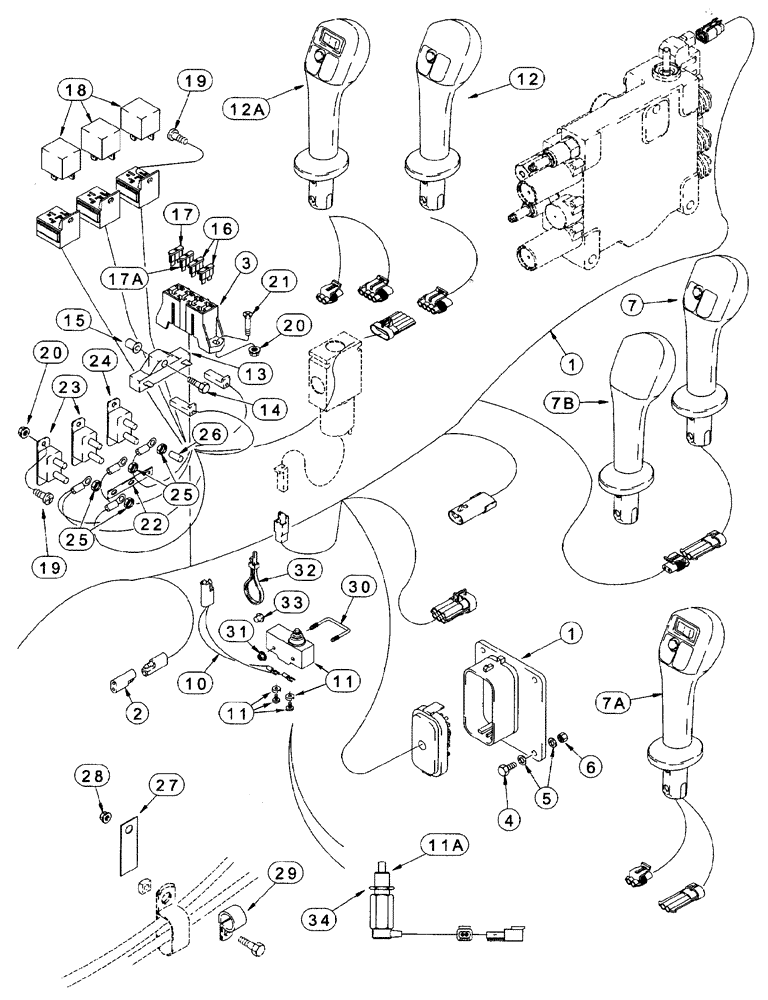

Запчасти Case 85XT (04-07) - HARNESS CHASSIS NORTH AMERICA/EUROPE, *- JAF0236483, FRONT (04) - ELECTRICAL SYSTEMS

1

250863A7

HARNESS

See Figure 04-10, If Used, Includes: Ref. 2

1шт.

1

353559A1

HARNESS

N.A. Only, See Figures 04-08, 04-10, 04-11, Used On Models With Engine No. 326964A1, Europe Only, Used On Models With Engine No. 326957A1, If Used

1шт.

1

372229A1

HARNESS

With Two-Way Weather Pack Connector, See Figures 04-08, 04-10, 04-11, If Used

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

1шт.

Part of harness P/N 250863A7

1шт.

3

245435C1

FUSE HOLDER

1шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

832-41306

NUT,M6 x 1, Cl 10

2шт.

7

235766A2

HANDLE

Right-Hand, Horn, See Figure 04-25

1шт.

7a

233436A2

HANDLE

Right-Hand, Horn, Turn Signal, See Figure 04-25

1шт.

7b

235763A1

HANDLE

Left-Hand, No Switches

1шт.

9

242306A1

SWITCH

Operator Presence, See Page(s) 9-75, 9-87, Not Illustrated

1шт.

10

H436183

CONNECTOR, ELEC

CONNECTOR Seat Harness To Sensor Switch, Used With Ref. 11

1шт.

Part of sensor switch P/N H435820

1шт.

10a

301405A1

CONNECTOR, ELEC

CONNECTOR Switch, Interlock, See Figure 04-08, Used With Ref. 11A, Not Illustrated

1шт.

Part of electric connection P/N 280925A1

1шт.

11

H435820

SWITCH

Sensor, Interlock, Used With Ref. 10

1шт.

Part of connector P/N H436183

1шт.

Used with U-bolt P/N H435814

1шт.

11a

280925A1

SWITCH

Sensor, Interlock, Used With Ref. 10A

1шт.

Part of connector P/N 301405A1

1шт.

Used with nut P/N 832-10416

1шт.

12

235765A2

HANDLE

Left-Hand, Brake, See Figure 04-26

1шт.

12a

235909A3

HANDLE

Left-Hand, Brake, High Flow, See Figure 04-26

1шт.

13

107558C1

RESISTOR

25 ohm

1шт.

14

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

No. 10 NF x 1-1/2

1шт.

15

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

16

A149800

FUSE,10 Amp

10 amp

2шт.

17

A149802

FUSE

20 amp

1шт.

17a

A149803

FUSE,25 Amp

25 amp

1шт.

18

D128310

RELAY

30 amp

3шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.

20

825-5145

NUT,M5, Flg Ser

7шт.

21

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

22

245861C1

BAR

1шт.

23

A22877

BREAKER,40A

40 amp

2шт.

24

D37203

BREAKER

15 amp

1шт.

25

225-14210

NUT,#10-32

7шт.

26

247333A1

CAP

6шт.

27

A37179

CLIP

2шт.

28

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

29

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

30

H435814

U-BOLT

Used With Ref. 11

1шт.

Used with nut P/N 193-1003

1шт.

31

193-1003

NUT,Keps, w/LW,#6-32

Used with Ref. 30

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in., If Equipped

2шт.

33

H438377

BUTTON

Strap Mount, If Equipped

2шт.

34

832-10416

NUT,M16 x 2, Cl 8

Used with Ref. 11A

1шт.
