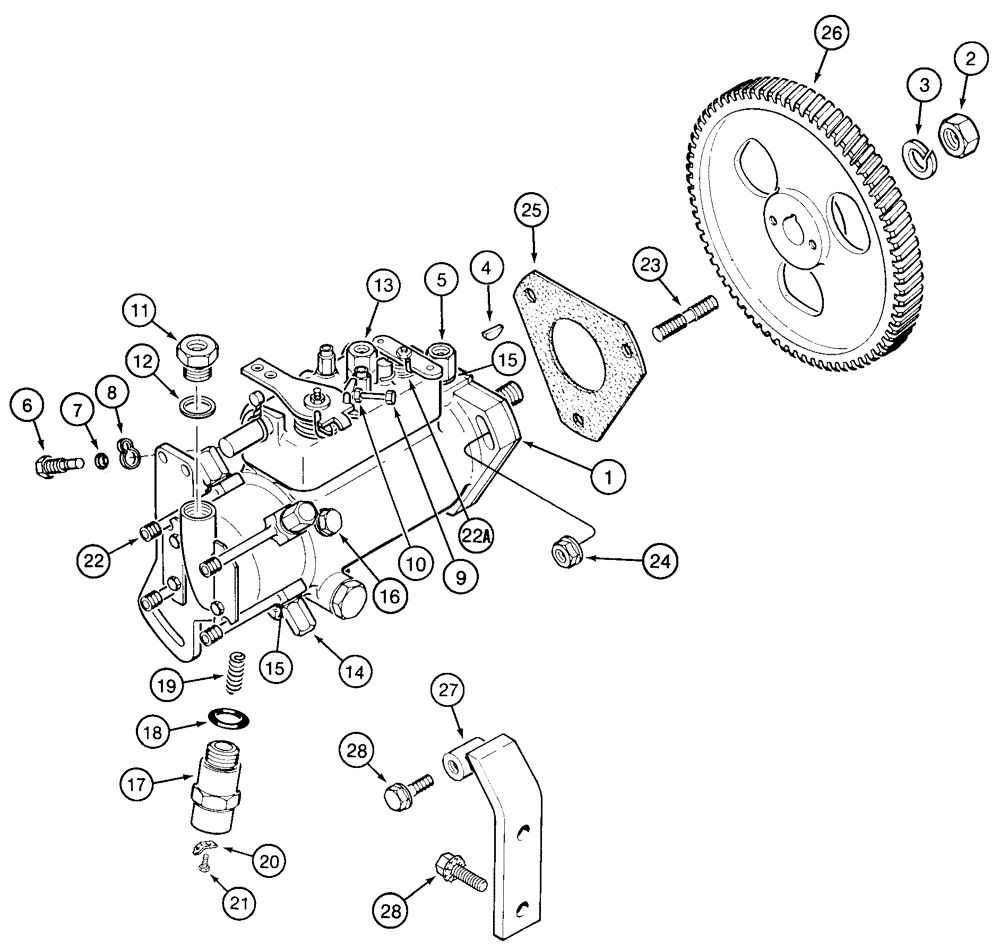

Запчасти Case 85XT (03-10A) - FUEL INJECTION PUMP AND DRIVE EUROPE, 4-390 ENGINE (03) - FUEL SYSTEM

1

J908656

PUMP, FUEL INJECTION

PUMP, INJECTION Includes: Ref. 2 - 22A

1шт.

1

JR908656

REMAN-INJECTION PUMP

1шт.

1

JC908656

CORE-INJECTION PUMP

Return Number

1шт.

2

J903738

NUT

M14

1шт.

Part of injection pump P/N J908656

1шт.

3

492-11056

LOCK WASHER,9/16"

1шт.

Part of injection pump P/N J908656

1шт.

4

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

Part of injection pump P/N J908656

1шт.

5

A77892

FITTING

3 mm

1шт.

Part of injection pump P/N J908656

1шт.

6

J904778

BOLT

1шт.

Part of injection pump P/N J908656

1шт.

7

J904780

SEAL

1шт.

Part of injection pump P/N J908656

1шт.

8

J904779

WASHER

1шт.

Part of injection pump P/N J908656

1шт.

9

J904637

SET SCREW

1шт.

Part of injection pump P/N J908656

1шт.

10

131-1144

LOCK NUT,Jam, #10 - 24

No. 10 NF

1шт.

Part of injection pump P/N J908656

1шт.

11

J904641

FITTING

1шт.

Part of injection pump P/N J908656

1шт.

12

K962748

WASHER

1шт.

Part of injection pump P/N J908656

1шт.

13

A77891

ORIFICE

1шт.

Part of injection pump P/N J908656

1шт.

14

J904646

BANJO BOLT

4шт.

Part of injection pump P/N J908656

1шт.

15

J904644

WASHER

9шт.

Part of injection pump P/N J908656

1шт.

16

K963867

SCREW

1шт.

Part of injection pump P/N J908656

1шт.

17

J904630

SOLENOID

12V

1шт.

Part of injection pump P/N J908656

1шт.

18

J904635

O-RING

1шт.

Part of injection pump P/N J908656

1шт.

19

J904777

SPRING

1шт.

Part of injection pump P/N J908656

1шт.

20

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

Part of injection pump P/N J908656

1шт.

21

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

1шт.

Part of injection pump P/N J908656

1шт.

22

K962755

ADAPTER

4шт.

Part of injection pump P/N J908656

1шт.

22a

J904781

GUIDE

1шт.

Part of injection pump P/N J908656

1шт.

23

J902501

STUD

M8 x 48

3шт.

24

J900589

NUT

M8

3шт.

25

J931607

GASKET

1шт.

26

J931387

GEAR

1шт.

27

J905387

BRACE

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
