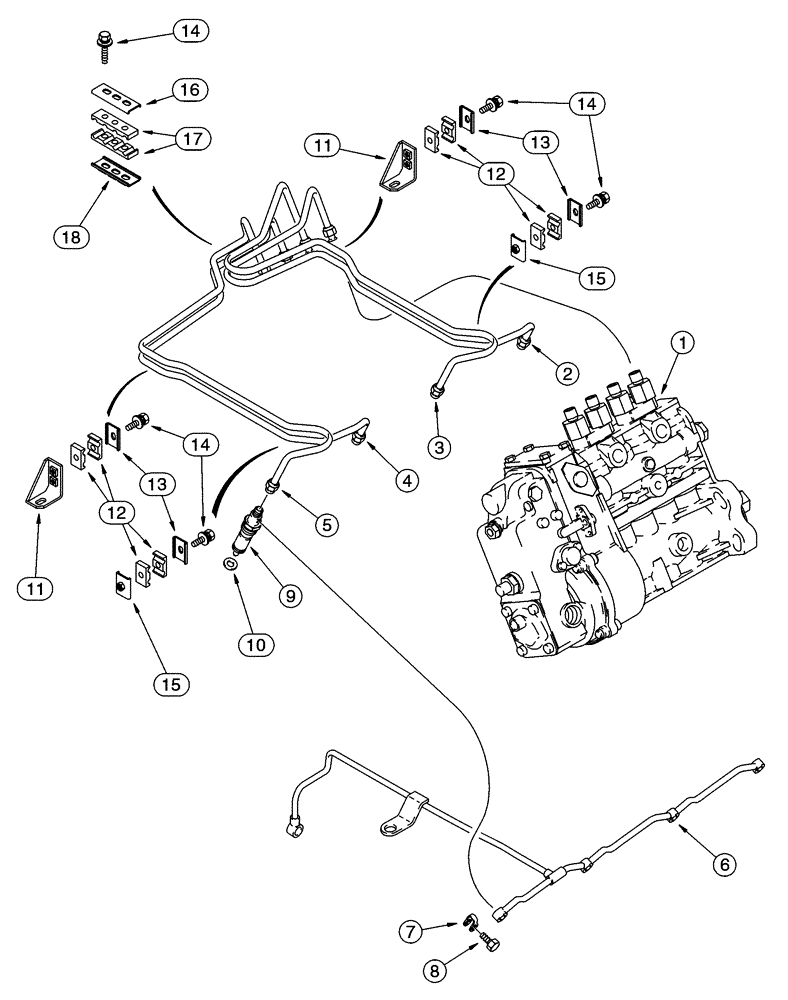

Запчасти Case 85XT (03-07) - FUEL INJECTION SYSTEM NORTH AMERICA, JAF0236484 -, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J930145

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

2

J929393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

3

J929394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

4

J929395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

5

J929396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 4

1шт.

6

J927633

TUBE

1шт.

7

J903380

SEAL

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

9

J930573

INJECTOR ASSY.

See Figure 03-08

4шт.

9

JR930573

REMAN-FUEL INJECTOR

4шт.

9

JC930573

CORE-FUEL INJECTOR

Return Number

4шт.

10

J906659

SEAL

7 mm, See Figure 03-08

4шт.

11

J920414

BRACE

2шт.

12

J917746

CLAMP

8шт.

13

CURJ904711

CLAMP

4шт.

14

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

7шт.

15

J917717

BRACE

2шт.

15

J918785

BRACE

1шт.

16

J918786

FIXING BRACKET

2шт.

17

J918784

CLAMP

1шт.
