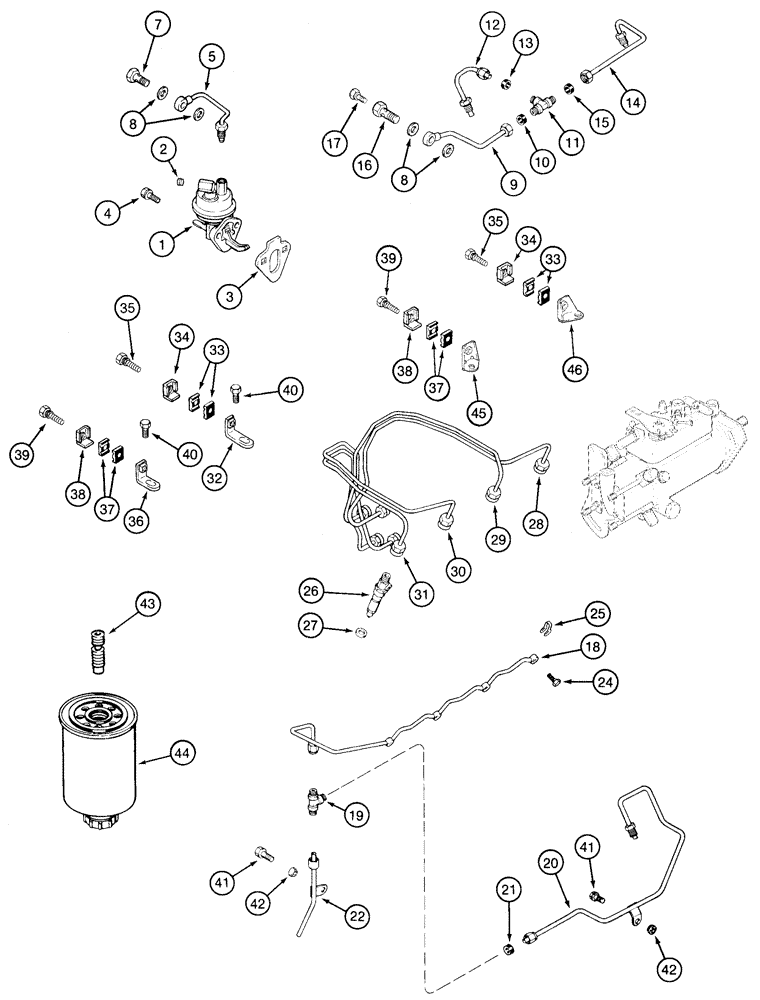

Запчасти Case 85XT (03-06) - FUEL INJECTION SYSTEM NORTH AMERICA/EUROPE, *- JAF0236483, 4-390 ENGINE (03) - FUEL SYSTEM

1

J928143

PUMP

1шт.

2

221-841

PLUG

1/4 PT

1шт.

3

J931059

GASKET

Replaces: J931348

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

Not Illustrated

1шт.

Part of tube P/N J905649

1шт.

7

J903035

BANJO BOLT

M12 x 24

1шт.

8

J918191

PACKING RING

12 x 18 x 1 mm

4шт.

9

J905364

FUEL TUBE

Includes: Ref. 10

1шт.

10

222-103

SLEEVE,5/16" Tube

1шт.

Part of tube P/N J905364

1шт.

11

J905353

TEE

1шт.

12

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

Includes: Ref. 13

1шт.

13

222-103

SLEEVE,5/16" Tube

1шт.

Part of tube assy. P/N J905375

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

Includes: Ref. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

Part of tube assy. P/N J905363

1шт.

J905860

BANJO BOLT

Consists Of Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT

1шт.

Part of screw P/N J905860

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW

1шт.

Part of screw P/N J905860

1шт.

18

J909695

FUEL TUBE

1шт.

19

222-121

TEE,3/16", Flex Tubing

1шт.

20

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

Includes: Ref. 21

1шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

Part of tube assy. P/N J925882

1шт.

22

J905692

FUEL TUBE

1шт.

24

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

25

J903380

SEAL

4шт.

26

REF

INSTRUCTION

INJECTOR ASSY., See Page(s) 3-37

4шт.

27

J906659

SEAL

7 mm

1шт.

28

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

1шт.

29

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

1шт.

30

J903524

FUEL TUBE

1шт.

31

J903525

FUEL TUBE

1шт.

32

J919381

BRACE

1шт.

33

J917746

CLAMP

4шт.

34

CURJ904711

CLAMP

2шт.

35

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

36

J919296

SUPPORT

1шт.

37

J917746

CLAMP

4шт.

38

CURJ904711

CLAMP

2шт.

39

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

40

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

41

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

42

J928759

SEALING WASHER

2шт.

43

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

44

J931062

FILTER

1шт.

45

J930688

SUPPORT

1шт.

46

J930689

SUPPORT

1шт.
