Запчасти Case 85XT (02-30) - GASKET KIT NORTH AMERICA, JAF0236484 -, 4-390 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

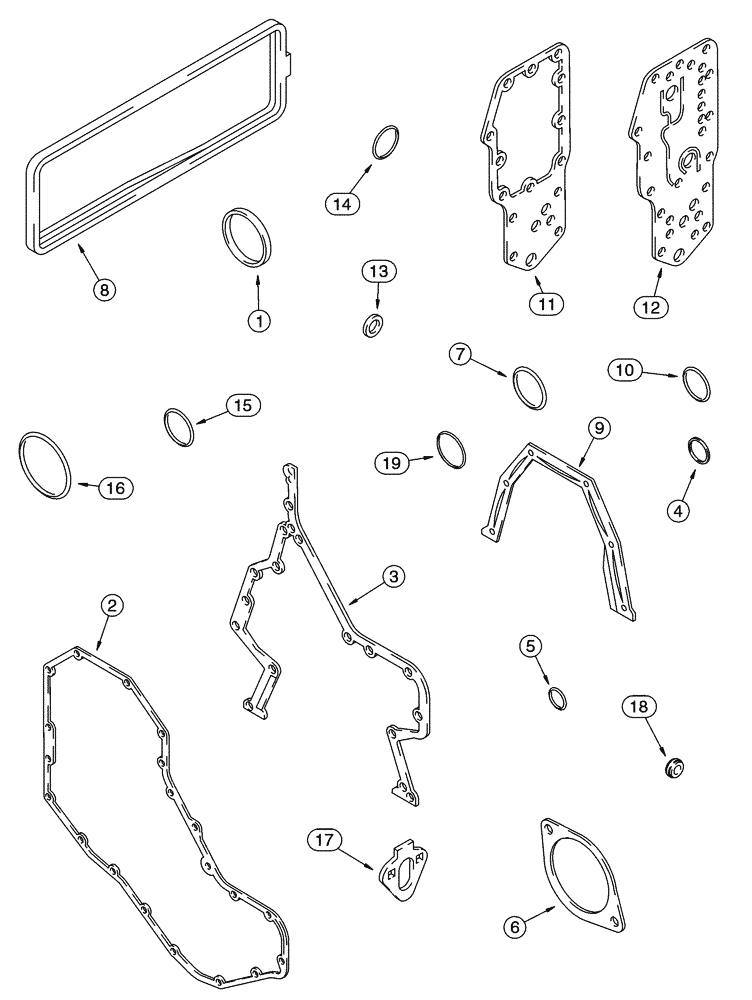

Схема запчастей Case 85XT - (02-30) - GASKET KIT NORTH AMERICA, JAF0236484 -, 4-390 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE
11
16
7
2
9
6
18
19
12
17
1
15
4
5
10
14
3
8
13

Артикул

Название

Примечание

Количество

A77864

SEAL PACKAGE

Consists Of: Ref. 1 - 19

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-31

1шт.

2

J918673

GASKET,1.02mm Thk

See Figure 02-11

1шт.

3

J931351

GASKET

See Figure 02-31

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 02-11

1шт.

5

J913994

O-RING

See Figure 02-31

1шт.

6

J929751

GASKET

See Figure 02-31

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Figure 02-31

1шт.

8

J283767

GASKET,7.4mm Thk

See Figure 02-31

1шт.

9

J928493

GASKET

See Figure 02-31

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-31

1шт.

11

J942914

GASKET

See Figure 02-31

1шт.

12

J929792

GASKET,1.2mm Thk

See Figure 02-31

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-31

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, If Equipped

1шт.

15

J929457

O-RING

23/32 ID x 7/64, See Figure 02-13

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-31

1шт.

17

J931059

GASKET

See Figure 02-31, Replaces: J931348

1шт.

18

J928759

SEALING WASHER

See Figure 02-31

4шт.

19

J930993

O-RING

See Figure 03-11

1шт.

Выбрано товаров: 20
