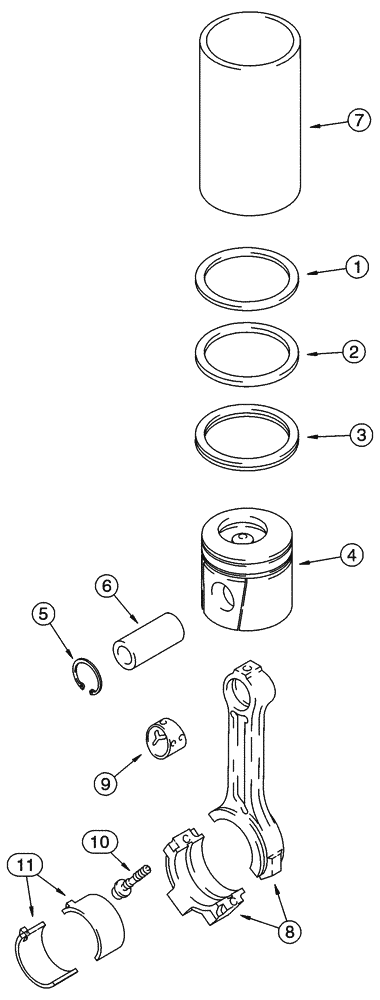

Запчасти Case 85XT (02-29) - PISTONS CONNECTING RODS EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE, USE WITH INJECTION PUMP J935671 (02) - ENGINE

J804980

PISTON & RINGS KIT

Use To Service Piston 3932514, Consists Of: J804930 and Ref. 1 - 3

4шт.

J800345

PISTON & RINGS KIT

Use To Service Piston 3934975, Consists Of: J804930 and Ref. 1 - 3

4шт.

J800349

PISTON & RINGS KIT

Use To Service Piston 3934976, Consists Of: J804930 and Ref. 1 - 3

4шт.

Note: Piston eight Was Selected To Obtain Optimum Ratio Per Cylinder. To Service, Check Part Number Of The Pistons In The Engine and Order The Service Kit For That Part Number. The Piston Number Or Last 4 Digits Are Stamped On Top Of The Piston. To Avoid

1шт.

J804930

PISTON RING SET

Standard, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON Standard

1шт.

5

J920691

SPECIAL RING

2шт.

6

J919053

PISTON PIN

1шт.

J804981

PISTON & RINGS KIT

Oversize, 0.5 mm, Consists Of: J804931 and Ref. 1 - 5

4шт.

J804931

PISTON RING SET

Oversize, 0.5 mm, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON Oversize, 0.5 mm

1шт.

5

J920691

SPECIAL RING

2шт.

6

J919053

PISTON PIN

1шт.

J804982

PISTON & RINGS KIT

Oversize, 1.0 mm, Consists Of: J804932 and Ref. 1 - 5

4шт.

J804932

PISTON RING SET

Oversize, 1.0 mm, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON Oversize, 1.0 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

Use With J800455

1шт.
