Запчасти Case 85XT (02-25) - GASKET KIT(VALVE GRIND) NORTH AMERICA/EUROPE *- JAF0236483, 4-390 ENGINE (02) - ENGINE

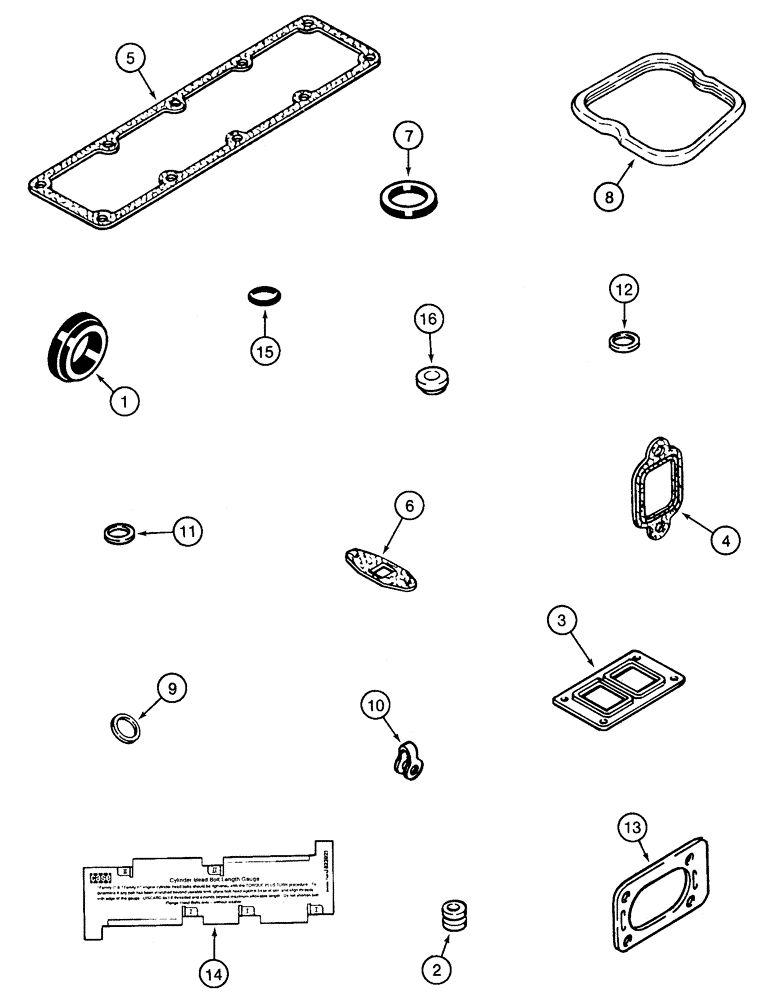

Схема запчастей Case 85XT - (02-25) - GASKET KIT(VALVE GRIND) NORTH AMERICA/EUROPE *- JAF0236483, 4-390 ENGINE (02) - ENGINE
1
10
4
12
14
15
3
7
9
11
8
6
16
5
13
2

Артикул

Название

Примечание

Количество

A77858

GASKET KIT

No Longer Available, See Figure 02-27, Order A77975, Consists Of: Ref. 1 - 16

1шт.

1

J923331

GASKET

See Figure 02-26

1шт.

2

J901097

SEAL

See Figure 02-26

8шт.

3

J901356

GASKET,0.5mm Thk

Not Used

1шт.

4

J905443

MANIFOLD GASKET

See Figure 02-26

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-26

1шт.

6

J931350

GASKET

Not Used

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

Oil Fill Cap, See Figure 02-27

1шт.

8

J930906

GASKET

See Figure 02-26

4шт.

9

J900808

SEAL

Injector

4шт.

10

J903380

SEAL

Connector, See Figure 03-06

4шт.

11

J906659

SEAL

Injector, 7 mm, See Figure 03-13

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Injector, See Figure 03-13

4шт.

13

J914856

GASKET,1.02mm Thk

Not Used

1шт.

14

J823921

GAUGE

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

16

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-26, Replaces: J928406

4шт.

Выбрано товаров: 17
