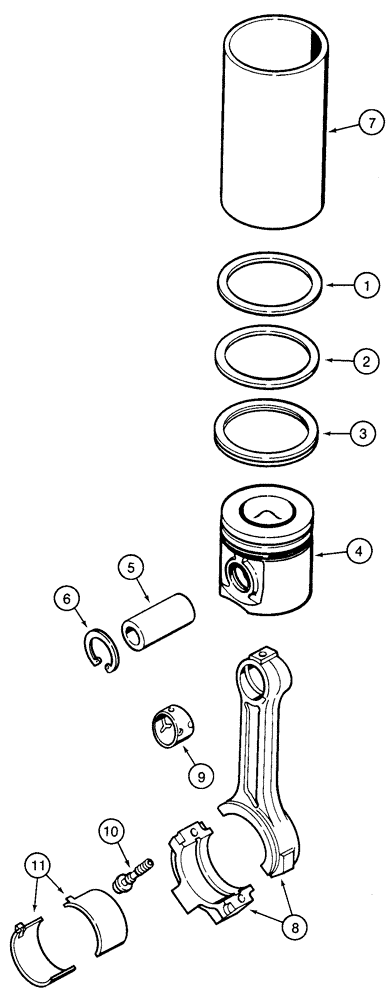

Запчасти Case 85XT (02-23) - PISTONS CONNECTING RODS NORTH AMERICA/EUROPE, *- JAF0236483, 4-390 ENGINE (02) - ENGINE

A77818

PACKAGE

Standard, Consists Of: A77401 and Ref. 1 - 6

6шт.

A77401

PISTON RING SET

Standard, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON Standard

1шт.

5

J919053

PISTON PIN

1шт.

6

J901706

RING

2шт.

A77819

PACKAGE

Oversize, 0.5 mm, Consists Of: A77463 and Ref. 1 - 6

6шт.

A77463

PISTON RING SET

Oversize, 0.5 mm, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON Oversize, 0.5 mm

1шт.

5

J919053

PISTON PIN

1шт.

6

J901706

RING

2шт.

A77820

PACKAGE

Oversize, 1.0 mm, Consists Of: A77464 and Ref. 1 - 6

1шт.

A77464

PISTON RING SET

Oversize, 1.0 mm, Consists Of: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON Oversize, 1.0 mm

1шт.

5

J919053

PISTON PIN

1шт.

6

J901706

RING

2шт.

7

J904166

SLEEVE

Use With A77818

1шт.

JR925232

ROD

Remanufactured, N.A. Only

1шт.

JC901569

CORE-ROD CONNECTING

CORE-CONNECTING ROD N.A. Only

1шт.

J925232

ROD, CONNECTING

Consists Of: Ref. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

85XT, Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD

1шт.

9

J901085

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

Standard

4шт.

11

A77466

BEARING SET

Undersize, 0.25 mm

4шт.

11

A77467

BEARING LINER

Undersize, 0.50 mm

4шт.

11

A77468

BEARING SET

Undersize, 0.75 mm

4шт.

11

A77469

BEARING SET

Undersize, 1.0 mm

4шт.
