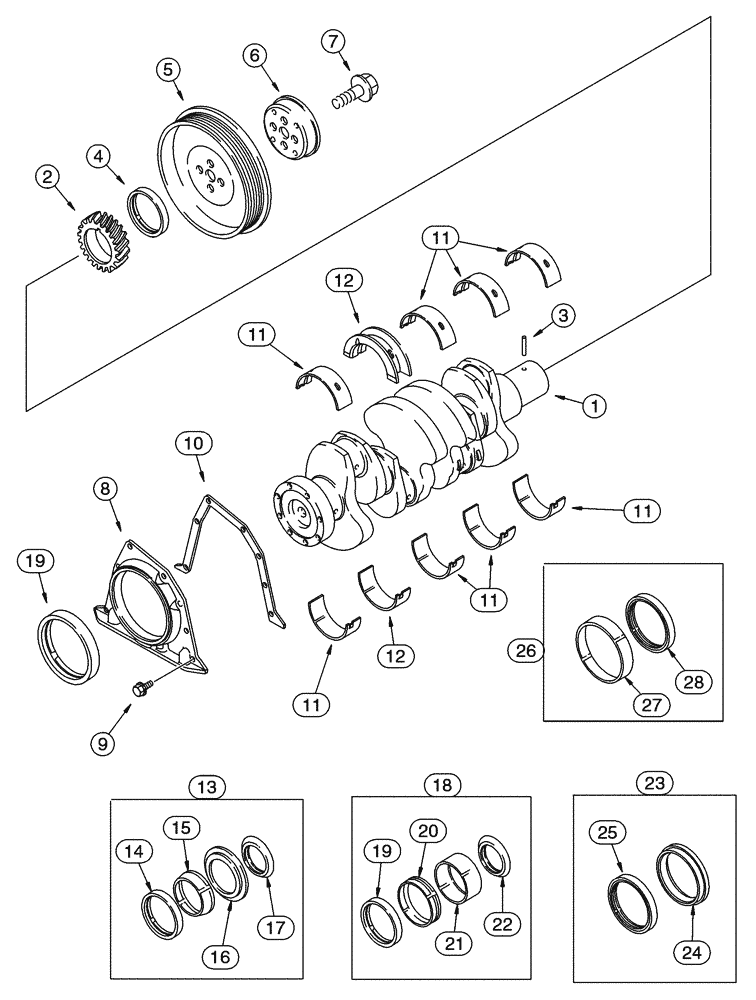

Запчасти Case 85XT (02-21) - CRANKSHAFT NORTH AMERICA/EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR908031

CRANKCASE

Remanufactured, Only For N.A.

1шт.

J929036R

REMAN-CRANKSHAFT

85XT EMISSIONS

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

85XT EMISSIONS, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

Part of crankshaft P/N J908031

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

Part of crankshaft P/N J908031

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, See Page(s) 2-95, Order A77889

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

Not Used In This Application

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

Replaces: J936260

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

1шт.

11

J804940

BEARING SET

Standard

4шт.

11

A77472

BEARING SET

Undersize, 0.25 mm

4шт.

11

A77474

BEARING SET

Undersize, 0.50 mm

4шт.

11

A77476

BEARING SET

Undersize, 0.75 mm

4шт.

11

A77478

BEARING SET

Undersize, 1.0 mm

4шт.

12

A77895

THRUST BEARING,KIT

Standard

1шт.

12

A77473

THRUST BEARING

Undersize, 0.25 mm

1шт.

12

A77475

THRUST BEARING

Undersize, 0.50 mm

1шт.

12

A77477

THRUST BEARING

Undersize, 0.75 mm

1шт.

12

A77479

THRUST BEARING

Undersize, 1.0 mm, 4-390 Emissions Certified Engine

1шт.

12

A77841

THRUST BEARING

Undersize, Oversize, 0.50 mm, 4-390 Emissions Certified Engine

1шт.

12

A77840

THRUST BEARING

Undersize, Oversize, 1.0 mm

1шт.

13

A77889

SEAL PACKAGE

Front, Consists Of: Ref. 15 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL Front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of seals package P/N A77889

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of seals package P/N A77889

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

Part of seals package P/N A77889

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Consists Of: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of seals package P/N A77890

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of seals package P/N A77890

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of seals package P/N A77890

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

Part of seals package P/N A77890

1шт.

23

J934486

SERVICE KIT

Crankshaft, Rear, Replaces: A77809, Consists Of: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL

1шт.

25

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of seals package P/N A77810

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of seals package P/N A77810

1шт.
