Запчасти Case 85XT (09-65) - DECALS ENGLISH (09) - CHASSIS

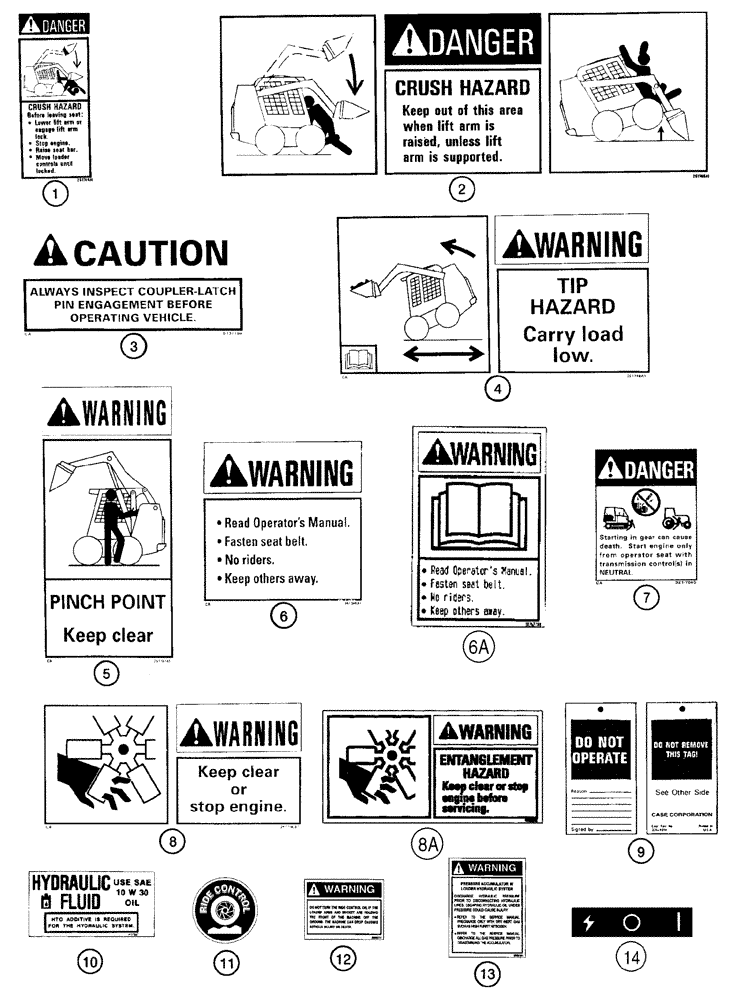

Схема запчастей Case 85XT - (09-65) - DECALS ENGLISH (09) - CHASSIS
11
13
8a
4
7
6
6a
12
3
8
2
5
14
1
10
9

Артикул

Название

Примечание

Количество

1

251744A1

DECAL

Crush Hazard

1шт.

2

251745A1

DECAL

Crush Hazard

1шт.

3

D137186

DECAL

Always Inspect

1шт.

4

251748A1

DECAL

Tip Hazard

1шт.

5

251747A1

DECAL

Pinch Point

2шт.

6

251749A1

DECAL

Read The Operator's Manual, -JAF0352233

1шт.

6a

382622A1

DECAL,60mm x 90mm H

Read The Operator's Manual, JAF0352234-

1шт.

7

321-7040

DANGER DECAL

Starting in gear

1шт.

8

251746A1

DECAL

Keep Clear, -JAF0352233

1шт.

8a

384267A1

WARNING DECAL

Keep Clear, JAF0352234-

1шт.

9

321-4614

TAG

Do Not Operate

1шт.

10

H437687

DECAL

Hydraulic Fluid

1шт.

11

304083A1

DECAL

Ride Control

2шт.

12

255927A1

WARNING DECAL

Do Not Turn Ride Control On, Models With Ride Control

1шт.

13

256318A1

DECAL

Pressure Accumulator In Loader Hydraulic System, Models With Ride Control

1шт.

14

176332A1

DECAL

Battery

1шт.

Выбрано товаров: 16
