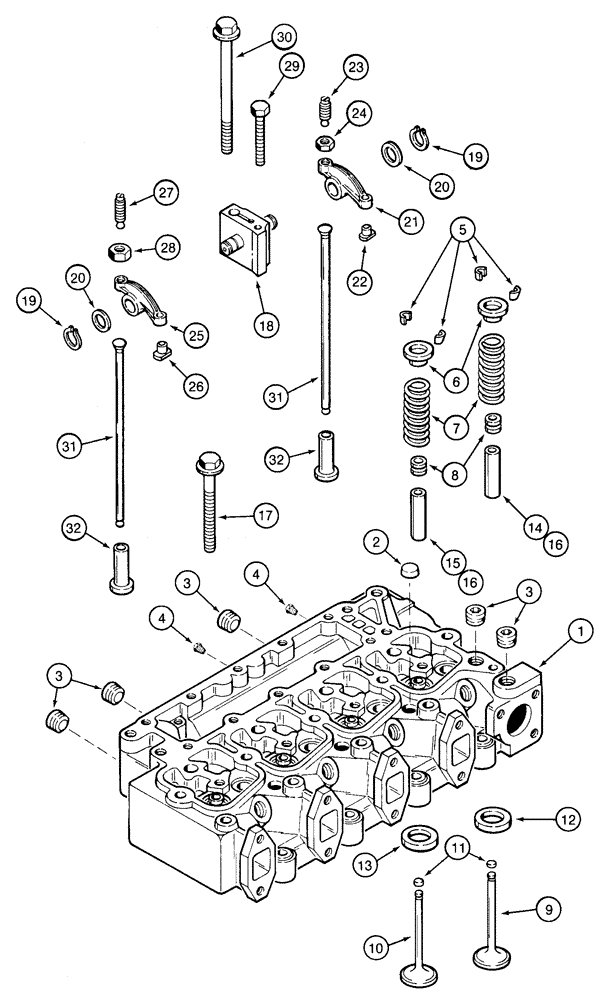

Запчасти Case 85XT (02-16B) - CYLINDER HEAD VALVE MECHANISM NORTH AMERICA/EUROPE, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
JR933494
REMAN-CYLINDER HEAD
N.A. Only
1шт.
JC930913
CORE-CYLINDER HEAD
1шт.
J933494
HEAD (CYLINDER)
Consists Of: Ref. 1 - 10
1шт.
1
J933419
HEAD (CYLINDER)
Includes: Ref. 2
1шт.
Part of cylinder head P/N J933494
1шт.
2
A77783
PLUG
21 mm OD
3шт.
Part of cylinder head P/N J933494
1шт.
Part of cylinder head P/N J933419
1шт.
3
217-466
DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF
5шт.
Part of cylinder head P/N J933494
1шт.
4
J906619
PLUG,1/8" - 27
1/8 PT
2шт.
Part of cylinder head P/N J933494
1шт.
5
CASJ900250
RETAINER
16шт.
6
J935038
RETAINER
8шт.
Part of cylinder head P/N J933494
1шт.
7
J932453
SPRING
8шт.
Part of cylinder head P/N J933494
1шт.
8
J921640
SEAL
8шт.
Part of cylinder head P/N J933494
1шт.
9
J920867
VALVE
4шт.
Part of cylinder head P/N J933494
1шт.
10
J920868
VALVE
4шт.
Part of cylinder head P/N J933494
1шт.
11
J910412
WEAR PAD
1шт.
12
J906854
SEAT, VALVE
Intake
4шт.
13
J904105
SEAT, VALVE
Exhaust
4шт.
14
J904408
GUIDE
14 mm OD, Ream To Fit
4шт.
15
J904409
GUIDE
14 mm OD, Ream To Fit
4шт.
17
J920779
BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9
70 mm
4шт.
17
J920780
BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9
120 mm
10шт.
18
J922488
SUPPORT
4шт.
19
J900242
SNAP RING
8шт.
20
J900245
WASHER
8шт.
21
J910811
ROCKER
Includes: Ref. 22 - 24
4шт.
22
NSS
NOT SOLD SEPARAT
INSERT
1шт.
Part of rocker P/N J910811
1шт.
23
J934086
ADJUSTMENT SCREW,3/8" - 24 x 29.85mm
1шт.
Part of rocker P/N J910811
1шт.
Part of rocker P/N J910811
1шт.
25
J910810
ROCKER
Includes: Ref. 26 - 28
4шт.
26
NSS
NOT SOLD SEPARAT
INSERT
1шт.
Part of rocker P/N J910810
1шт.
27
J934086
ADJUSTMENT SCREW,3/8" - 24 x 29.85mm
1шт.
Part of rocker P/N J910810
1шт.
29
J901221
BOLT
M8 x 75
4шт.
30
J920781
BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9
180 mm
4шт.
31
J284377
PUSH ROD
8шт.
Выбрано товаров: 51
