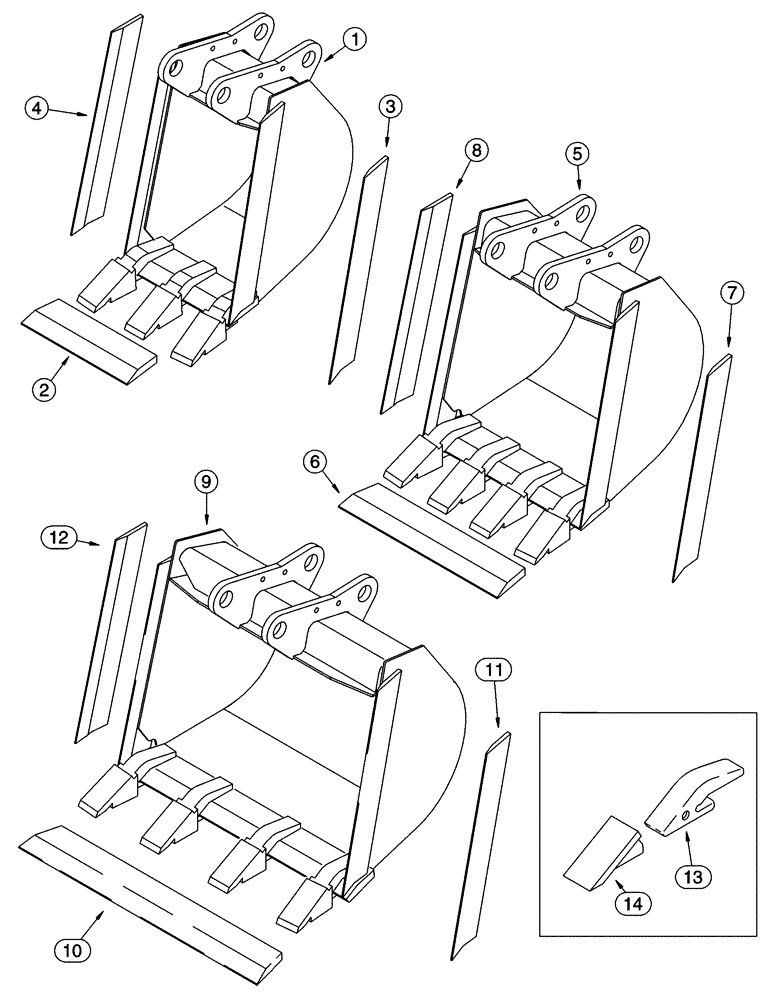

Запчасти Case 85XT (09-60) - BUCKETS - BACKHOE, 344 MM (13-1/2") WIDE BUCKET (09) - CHASSIS

H674115

BUCKET

344 mm (13-1/2 in.), Machinery Item, Consists of: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET

1шт.

Part of P/N H674115

1шт.

2

H438604

EDGE

344 mm (13-1/2 in.)

1шт.

Part of P/N H674115

1шт.

3

H437364

EDGE

LH

1шт.

Part of P/N H674115

1шт.

4

H437365

EDGE

RH

1шт.

Part of P/N H674115

1шт.

H674116

BUCKET

458 mm (18 in.), Machinery Item, Consists Of: Ref. 5 - 8, wide bucket

1шт.

5

NSS

NOT SOLD SEPARAT

BUCKET, 458 mm (18") wise

1шт.

Part of bucket P/N H674116

1шт.

6

H438593

EDGE

458 mm (18 in.) wide bucket

1шт.

Part of bucket P/N H674116, 458 mm (18") wide

1шт.

7

H437364

EDGE

LH, 458 mm (18") wide bucket

1шт.

Part of bucket P/N H674116

1шт.

8

H437365

EDGE

RH, 458 mm (18") wide bucket

1шт.

Part of bucket P/N H674116

1шт.

H674117

BUCKET

610 mm (24 in.), Machinery Item, Consists Of: Ref. 9 - 12, wide bucket

1шт.

9

NSS

NOT SOLD SEPARAT

BUCKET, 610 mm (24") wide

1шт.

Part of P/N H674117

1шт.

10

H438543

EDGE

610 mm (24 in.) wide bucket

1шт.

Part of P/N H674117

1шт.

11

H437364

EDGE

LH, 610 mm (24") wide bucket

1шт.

Part of P/N H674117

1шт.

12

H437365

EDGE

RH, 610 mm (24") wide bucket

1шт.

Part of P/N H674117

1шт.

H672429

TOOTH

Consists Of: Ref. 13 and 14, bucket teeth

1шт.

13

NSS

NOT SOLD SEPARAT

SHANK, bucket teeth

1шт.

Part of tooth P/N H672429

1шт.

14

D27748

TOOTH

bucket teeth

1шт.

Part of tooth P/N H672429

1шт.
