Запчасти Case 85XT (02-14A) - OIL PUMP, PAN, HEATER NORTH AMERICA JAF0236484, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

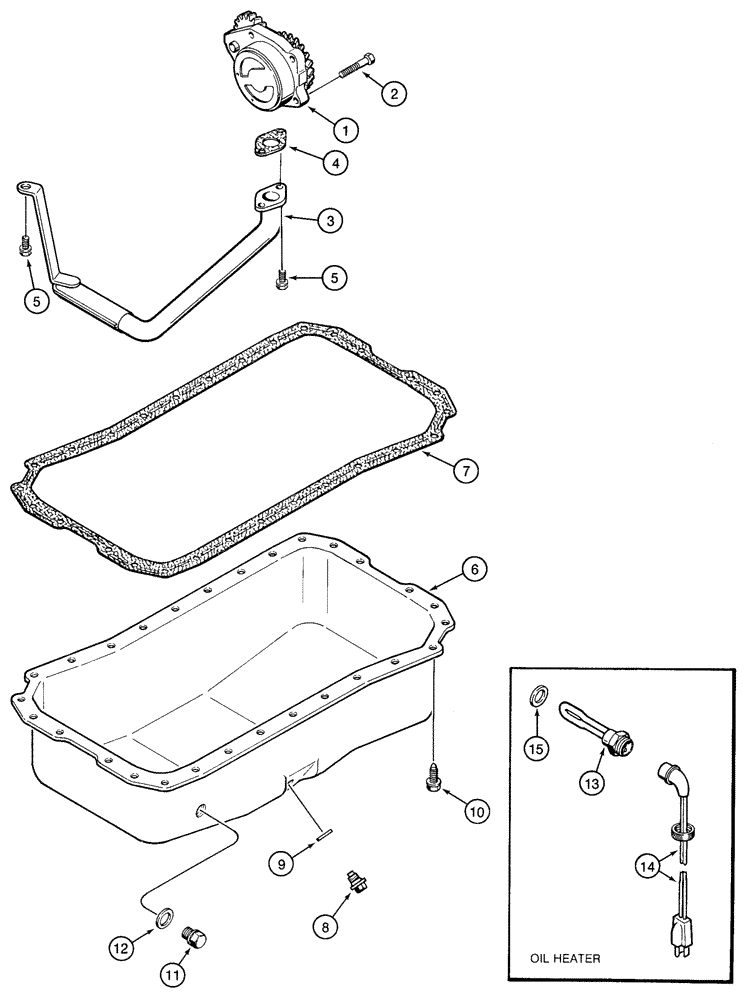

Схема запчастей Case 85XT - (02-14A) - OIL PUMP, PAN, HEATER NORTH AMERICA JAF0236484, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
5
11
3
8
1
9
13
5
6
10
15
14
12
2
7
4

Артикул

Название

Примечание

Количество

1

J932449

PUMP, ENGINE OIL

Pump

1шт.

1

JR937028

REMAN-ENG OIL PUMP

85XT , Reman For New P/N J932449

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

J900677

BOLT,Hex

Bolt M8 x 30

4шт.

3

J905223

TUBE

Tube

1шт.

4

J931349

GASKET

Gasket , Mounting

1шт.

Part of gasket kit P/N A77673

1шт.

5

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

3шт.

6

J907570

PAN

Pan , Oil

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET , pan

1шт.

Part of gasket kit P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

Plug , Hex M18

1шт.

9

J920773

SEALING WASHER

Washer

1шт.

Part of gasket kit P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

Plug , Hex M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Washer

1шт.

A77673

GASKET KIT

Package , Gaskets Consists Of: 4, 7 , 9

1шт.

A77490

KIT

Kit 120V Consists Of : 13 , 14 Order J902425 ENGINE OIL HEATER

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT ENGINE OIL HEATER

1шт.

Part of kit P/N A77490

1шт.

14

196466A1

ELECTRIC CABLE

Cable 1829 mm (72 in.) ENGINE OIL HEATER

1шт.

Part of kit P/N A77490

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Washer ENGINE OIL HEATER

1шт.

Выбрано товаров: 24
