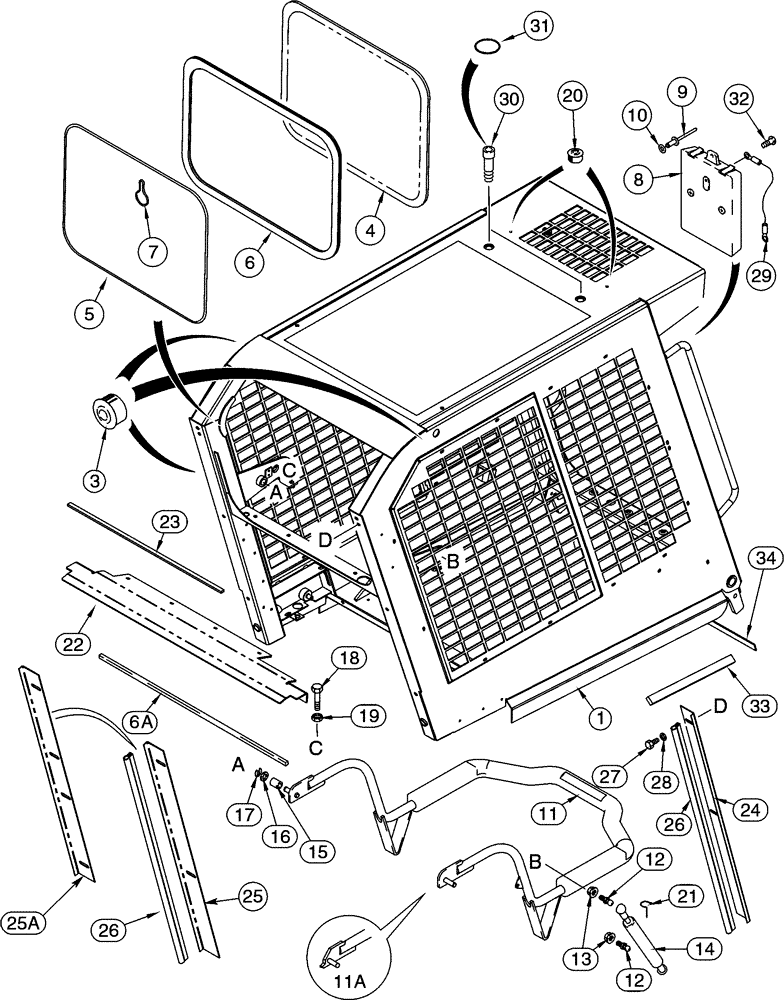

Запчасти Case 85XT (09-35) - CANOPY, ROPS FRAME/SEAT BAR, WITH DELUXE HEATER/ AIR COND., N. AMER. -JAF0319222, EURO. -JAF0352674 (09) - CHASSIS

1

341843A1

ROPS, Order Decals Separately Ref. 7 (9-163), Ref. 1 and 2 (9-167), Ref. 1 and 6 (9-173), Machinery Item

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

3шт.

4

279350A1

GLASS

Rear

1шт.

5

299368A1

BAND

1825 mm (71-7/8 in.)

1шт.

6

299367A1

BAND

1825 mm (71-7/8 in.)

1шт.

6a

315083A1

SEALING STRIP

Window Frame, 610 mm (40 in.), Europe Only

1шт.

7

107996A1

RING

1шт.

8

R46464

CASE

1шт.

9

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

10

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

11

250842A3

BAR ASSY.

North American Models -JAF0273028, European Models -JAF0274114

1шт.

11a

318038A1

BAR ASSY.

North American Models JAF0273029-, European Models JAF0274115-

1шт.

12

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

14

189787A2

SHOCK ABSORBER

1шт.

15

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

17

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

18

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

20

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

21

254307A1

CLIP

2шт.

22

292190A2

COWL

Hood

1шт.

23

275066A1

SEAL

628 mm

1шт.

24

280463A1

PROTECTION PLATE

Left-Hand, No Longer Used, Order 280476A2, Ref. 25A

1шт.

25

280476A1

PROTECTION PLATE

Right-Hand, No Longer Used, Order 280476A2, Ref. 25A

1шт.

25a

280476A2

ANGLE

ROPS To Frame Seal Holder

1-2шт.

26

280491A1

SEAL

725 mm

2шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Manual, Operators, 15 in., Replaces: L11541, L18331

1шт.

30

326-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

Models without lift hooks, Replaced by Ref. 31, 293887A1

2шт.

31

293887A1

COVER

70 mm (2-3/4 in.), Models Without Lift Hooks

2шт.

32

R46463

SCREW,0.18" x 0.75"

1шт.

33

313149A1

SEAL

ROPS Screen To Chassis, 355 mm (14 in.)

2шт.

34

313150A1

SEAL

ROPS Side Front Toe Guard, 774 mm (30-1/2 in.)

1шт.

28

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
