(85XT) - CASE SKID STEER LOADER (9/97-12/05)
/
(09) - CHASSIS
/

(09-31) - SEAT SUSPENSION

Запчасти Case 85XT (09-31) - SEAT SUSPENSION (09) - CHASSIS

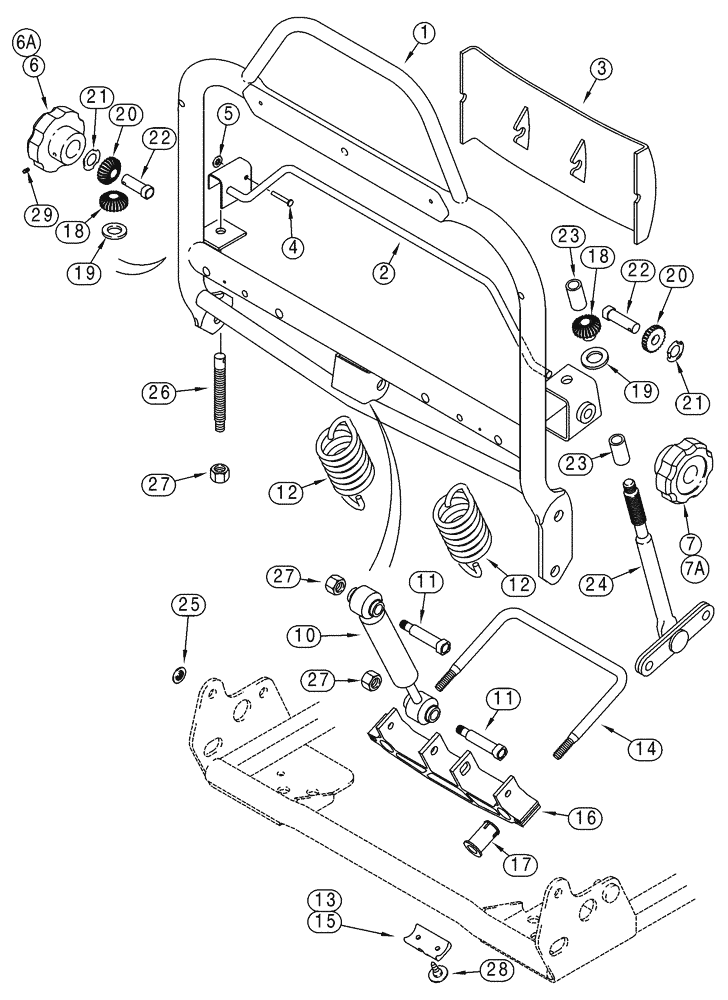

Схема запчастей Case 85XT - (09-31) - SEAT SUSPENSION (09) - CHASSIS
20
7a
2
12
6a
21
10
11
24
27
14
27
17
29
27
12
5
23
7
15
23
3
1
13
28
20
18
26
4
19
22
19
18
16
11
6
22
21
25

№

Артикул

Название

Примечание

Количество

308307A1

SEAT

Replaces: 222023A2 & 302138A1, Consists Of: Ref. 1 - 29, Includes 09-30, 09-32

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME Backrest

1шт.

291765A1

ASSEMBLY

LUMBAR, Consists Of: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

CRANK

1шт.

Part of lumbar assy. P/N 291765A1

1шт.

3

NSS

NOT SOLD SEPARAT

SUPPORT Lumbar

1шт.

Part of lumbar assy. P/N 291765A1

1шт.

4

NSS

NOT SOLD SEPARAT

PIN

1шт.

Part of lumbar assy. P/N 291765A1

1шт.

5

NSS

NOT SOLD SEPARAT

NUT Special

1шт.

Part of lumbar assy. P/N 291765A1

1шт.

291756A1

ASSEMBLY

Order One Kit Per Side, Consists Of Ref. 6 and 291767A1, or Ref. 7 and 291767A1

1шт.

6

NSS

NOT SOLD SEPARAT

KNOB Lumbar Adjustment, Retained By Flange Nut

1шт.

Part of assembly P/N 291756A1

1шт.

6a

361107A1

KIT

Lumbar Knob, Retained By 1/4-20 NC Set Screw

1шт.

7

NSS

NOT SOLD SEPARAT

KNOB Recliner, Retained By Flange Nut

1шт.

Part of assembly P/N 291756A1

1шт.

7a

361106A1

KIT

Recliner Knob, Retained By 1/4-20 NC Set Screw

1шт.

291767A1

ASSEMBLY

EMBLEM, Consists Of: Ref. 8 and 9

1шт.

Part of assembly P/N 291756A1

1шт.

8

NSS

NOT SOLD SEPARAT

EMBLEM Lumbar, Not Illustrated

1шт.

Part of emblem assy. P/N 291767A1

1шт.

9

NSS

NOT SOLD SEPARAT

EMBLEM Recliner, Not Illustrated

1шт.

Part of emblem assy. P/N 291767A1

1шт.

291748A1

ASSEMBLY

Consists Of: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

DAMPER

1шт.

Part of assembly P/N 291748A1

1шт.

11

NSS

NOT SOLD SEPARAT

PIN

2шт.

Part of assembly P/N 291748A1

1шт.

291749A1

ASSEMBLY

Consists Of: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING

2шт.

Part of assembly P/N 291749A1

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING Spring Arm

2шт.

Part of assembly P/N 291749A1

1шт.

Part of assembly P/N 291761A1

1шт.

REF

INSTRUCTION

SEAT

1шт.

291761A1

ASSEMBLY

Consists Of: Ref. 13 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

ARM Spring

1шт.

Part of assembly P/N 291761A1

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING Spring Arm

2шт.

Part of assembly P/N 291761A1

1шт.

16

NSS

NOT SOLD SEPARAT

SADDLE

1шт.

Part of assembly P/N 291761A1

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING Saddle

2шт.

Part of assembly P/N 291761A1

1шт.

291754A1

ASSEMBLY

Consists Of: Ref. 18 - 23

2шт.

18

NSS

NOT SOLD SEPARAT

NUT

1шт.

Part of assembly P/N 291754A1

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER Thrust

1шт.

Part of assembly P/N 291754A1

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR Bevel

1шт.

Part of assembly P/N 291754A1

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER Spring

1шт.

Part of assembly P/N 291754A1

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

Part of assembly P/N 291754A1

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING, If Equipped

2шт.

Part of assembly P/N 291754A1

1шт.

291766A1

ASSEMBLY

Consists Of: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW ASSY.

1шт.

Part of assembly P/N 291766A1

1шт.

25

NSS

NOT SOLD SEPARAT

NUT Special

1шт.

Part of assembly P/N 291766A1

1шт.

26

291771A1

ADJUSTMENT SCREW

1шт.

27

NSS

NOT SOLD SEPARAT

NUT

3шт.

28

NSS

NOT SOLD SEPARAT

BOLT Special

4шт.

29

NSS

NOT SOLD SEPARAT

SET SCREW

2шт.
