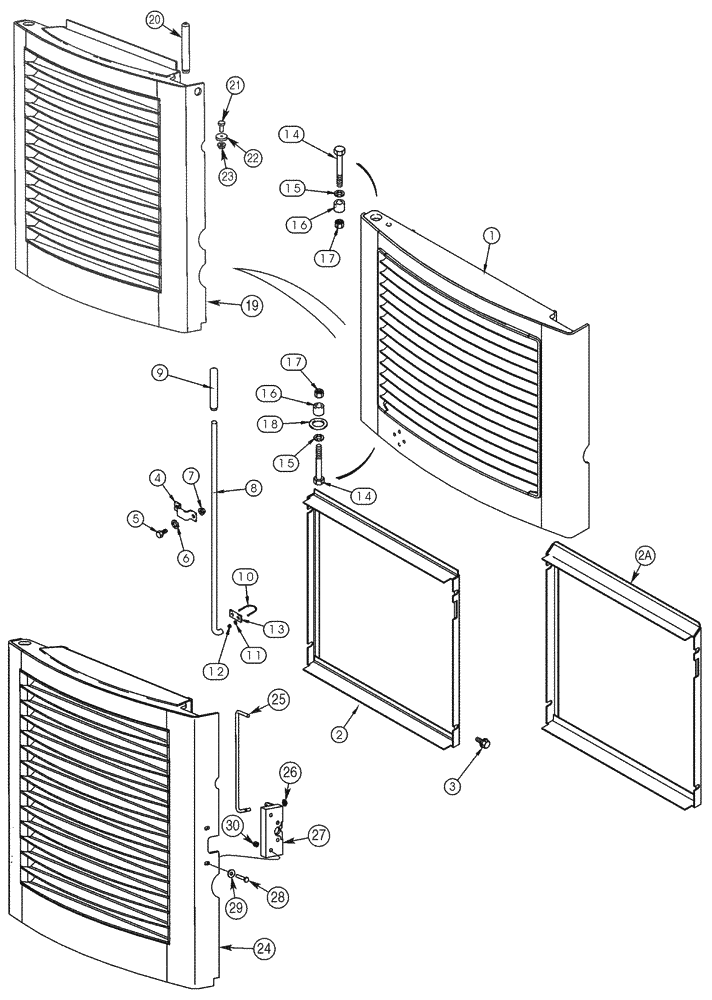

Запчасти Case 85XT (09-24) - DOOR, REAR WITHOUT SOUNDPROOFING (NORTH AMERICA), DOOR W/O WELDED SHROUD (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
280610A1
DOOR
Rear, No Longer Available, Order 352403A1, Ref. 19
1шт.
2
280672A2
DEFLECTOR
Replaces: 280672A1
1шт.
2a
302064A2
SHROUD
Models With Air Conditioning
1шт.
3
844-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
4шт.
4
194152A1
STAPLE
1шт.
5
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
2шт.
7
832-41308
NUT,M8 x 1.25, Cl 10
2шт.
8
194280A1
ROD
1шт.
9
1978473C1
HANDLE
1шт.
10
282510A1
U-BOLT
BOLT "U"
1шт.
11
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
12
832-41306
NUT,M6 x 1, Cl 10
2шт.
13
H373779
LARGE PLATE
PLATE, LARGE
1шт.
14
827-16060
BOLT,Hex, M16 x 2 x 60mm, Cl 10.9
2шт.
15
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
2шт.
16
248461A1
BUSHING,16.5mm ID x 24mm OD x 22mm L
2шт.
17
832-41316
NUT,M16 x 2, Cl 10
2шт.
18
248988A1
THRUST WASHER
Door With Welded Shroud
1шт.
19
352403A1
DOOR ASSY.
Rear, Without Door Latch, Ref. 27, Models With and Without Air Conditioning, If Used, Door Without Welded Shroud
1шт.
20
1978473C1
HANDLE
Door With Welded Shroud
1шт.
21
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
Door with Welded Shroud
1шт.
23
825-51410
FLANGE NUT,M10, Flg Ser
Door with Welded Shroud
1шт.
24
434568A1
DOOR
Rear, With Door Latch, Ref. 27, Models With Or Without Air Conditioning, If Used, Door With Welded Shroud, For Mounting, See Ref. 14 - 18
1шт.
25
434565A1
ROD
Latch Pull, Door With Welded Shroud
1шт.
26
380751A1
NUT
Push, Door With Welded Shroud
1шт.
27
R55002
LATCH
Door With Welded Shroud
1шт.
28
814-6035
BOLT,Hex, M6 x 1 x 35mm, Cl 8.8
Door with welded shroud
2шт.
29
895-25006
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
Door with Welded Shroud
2шт.
30
832-41406
NUT,M6 x 1, Cl 8
Door With Welded Shroud
2шт.
22
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
Door with Welded Shroud
1шт.
6
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
2шт.
Выбрано товаров: 31
