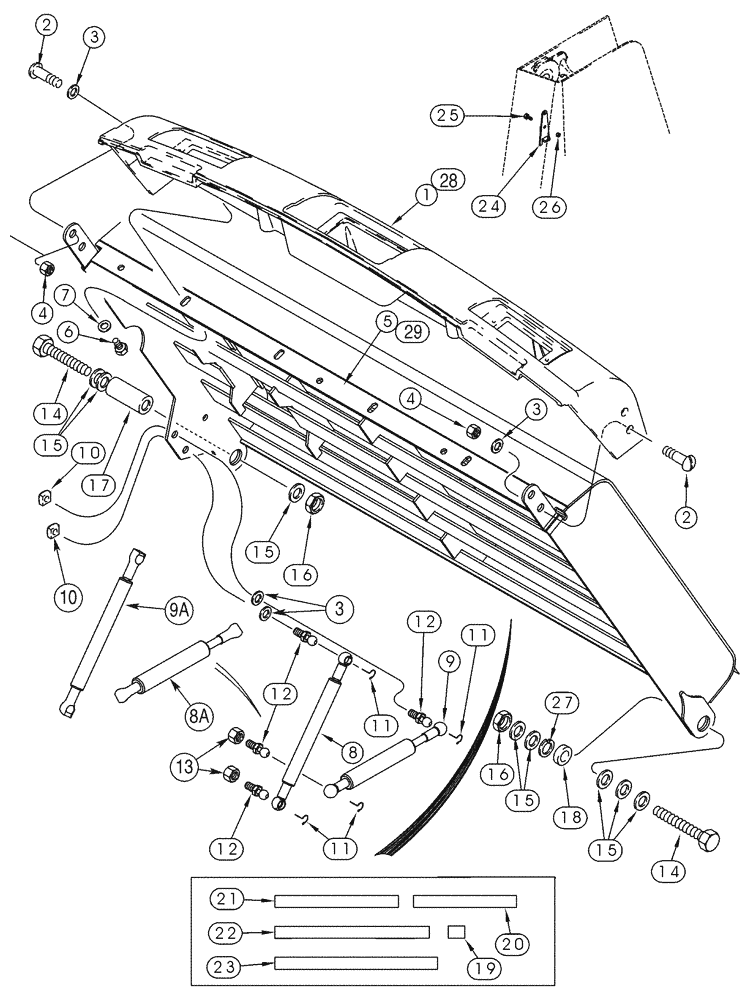

Запчасти Case 85XT (09-23) - HOOD WITH SOUNDPROOFING Europe (09) - CHASSIS

309039A1

Tan, If Used, Not Serviced As An Assembly, Order Components, Includes: Ref. 1 - 10, 12, 13, 19 - 23

1шт.

1

186585A1

COWL

Upper Rear, Tan

1шт.

Part of P/N 309039A1

1шт.

2

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

M8 x 20

4шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

4

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

5

307078A1

SIEVE

Tan

1шт.

Part of P/N 309039A1

1шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

8

251360A1

CYLINDER ASSY.

Hood, 76 mm strk, No Longer Available, Order 400471A1, Ref. 8A

1шт.

Part of P/N 309039A1

1шт.

8a

400471A1

DAMPER

76 mm strk

1шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

9

297891A1

GAS STRUT

Hood, 38 mm strk, No Longer Available, Order 400472A1, Ref. 9A

1шт.

Part of P/N 309039A1

1шт.

9a

400472A1

SPRING,10mm Rod, 38.1mm Stroke

38 mm strk

1шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

11

254307A1

CLIP

Use With 251360A1, 297891A1

4шт.

12

189609A1

BALL STUD,M8 x 1.25

M8

4шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

13

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

14

302116A1

BOLT

M10 x 50; 10.9

2шт.

16

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

17

284138A1

SPACER

1шт.

18

284794A1

SPACER

1шт.

19

309680A1

FILLING STRIP

Adhesive-Backed, 70 mm (2-3/4 in.)

5шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

20

309681A1

FILLING STRIP

Adhesive-Backed, 440 mm (17-3/8 in.)

2шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

21

309682A1

FILLING STRIP

Adhesive-Backed, 565 mm (22-1/4 in.)

1шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

22

309684A1

FILLING STRIP

Adhesive-Backed, 710 mm (28 in.)

1шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

23

309683A1

FILLING STRIP

Adhesive-Backed, 745 mm (29-3/8 in.)

1шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.

24

309117A1

EXTENSION

Hood Lock

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

27

892-11010

LOCK WASHER,M10

1шт.

426788A1

HOOD ASSY.

Gray, If Used, Includes: Ref. 2 - 4, 6, 7, 8A, 9A, 10, 12, 13, 19 - 23, 28 and 29

1шт.

28

426787A1

COWLING

Upper Rear, Gray, If Used

1шт.

Part of hood assy. P/N 426788A1

1шт.

29

426785A1

HOOD ASSY.

Gray, If Used

1шт.

Part of hood assy. P/N 426788A1

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

Part of P/N 309039A1

1шт.

Part of hood assy. P/N 426788A1

1шт.
