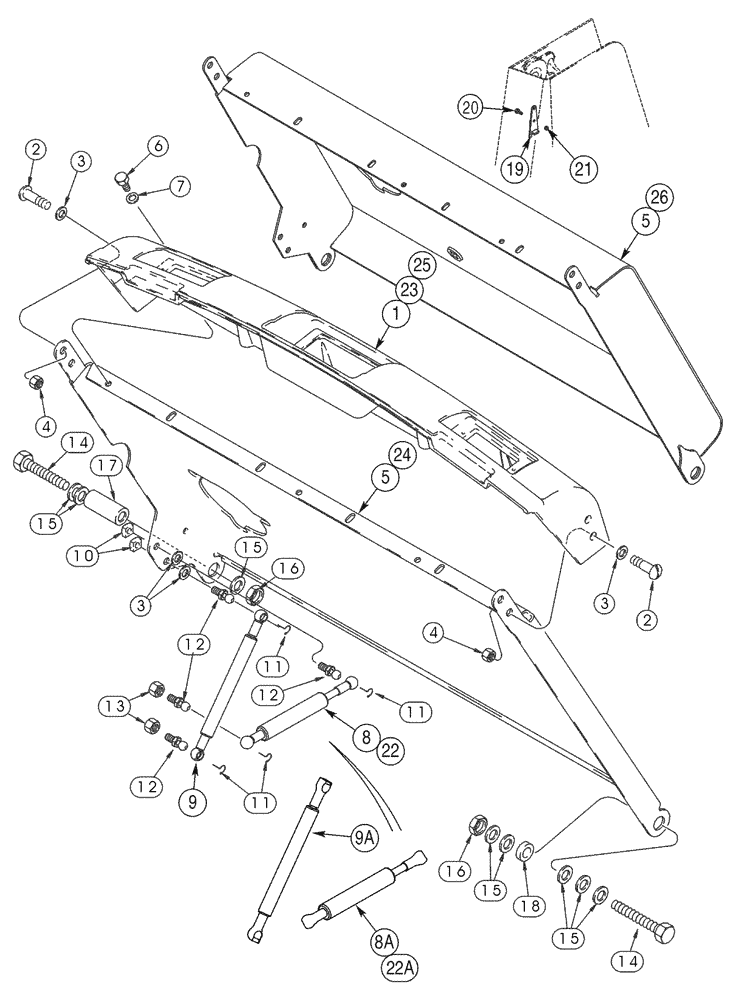

Запчасти Case 85XT (09-22) - HOOD WITHOUT SOUNDPROOFING North America (09) - CHASSIS

254327A1

COWL

Tan, If Used, Models Without Air Conditioning, Includes: Ref. 1 - 5, 6 - 10, 12 and 13

1шт.

281063A1

Tan, If Used, Models With Air Conditioning, Not Available As An Assembly, Order Components, Includes: Ref. 1 - 4, 5A - 7, 9A, 10, 12, 13 and 22A

1шт.

1

186585A1

COWL

Upper Rear, Tan

1шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

2

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

M8 x 20

4шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

4

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

5

283079A1

COWL

Tan

1шт.

Part of cowl P/N 254327A1

1шт.

5a

293473A1

HOOD

Tan, If Used, Models With Air Conditioning

1шт.

Part of P/N 281063A1

1шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

8

248069A1

CYLINDER ASSY.

Hood, 38 mm strk, No Longer Available, Order 400473A1, Ref. 8A

1шт.

Part of cowl P/N 254327A1

1шт.

8a

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

38 mm strk

1шт.

Part of cowl P/N 254327A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

9

251360A1

CYLINDER ASSY.

Hood, 76 mm strk, No Longer Available, Order 400471A1, Ref. 9A

1шт.

Part of cowl P/N 254327A1

1шт.

9a

400471A1

DAMPER

76 mm strk

1шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

11

254307A1

CLIP

4шт.

12

189609A1

BALL STUD,M8 x 1.25

M8

4шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

13

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

14

302116A1

BOLT

M10 x 50; 10.9

2шт.

16

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

17

284138A1

SPACER

1шт.

18

284794A1

SPACER

1шт.

19

309117A1

EXTENSION

Hood lock, Models With Air Conditioning

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

22

297891A1

GAS STRUT

38 mm strk, Models With Air Conditioning, No Longer Available, Order 400472A1, Ref. 22A

1шт.

22a

400472A1

SPRING,10mm Rod, 38.1mm Stroke

38 mm strk, Models With Air Conditioning

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426790A1

1шт.

426789A1

HOOD ASSY.

Gray, If Used, Models Without Air Conditioning, Includes: Ref. 2 - 4, 6, 7, 8A, 9A, 10, 12, 13, 23 and 24

1шт.

23

426787A1

COWLING

Upper Rear, Gray

1шт.

Part of hood assy. P/N 426789A1

1шт.

24

426791A1

PLATE

Gray

1шт.

Part of hood assy. P/N 426789A1

1шт.

426790A1

HOOD ASSY.

Gray, If Used, Models With Air Conditioning, Includes: Ref. 2 - 4, 6, 7, 9A, 10, 12, 13, 22A, 25 and 26

1шт.

25

426787A1

COWLING

Upper Rear, Gray

1шт.

Part of hood assy. P/N 426790A1

1шт.

26

426792A1

HOOD

Gray

1шт.

Part of hood assy. P/N 426790A1

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

Part of cowl P/N 254327A1

1шт.

Part of P/N 281063A1

1шт.

Part of hood assy. P/N 426789A1

1шт.

Part of hood assy. P/N 426790A1

1шт.
