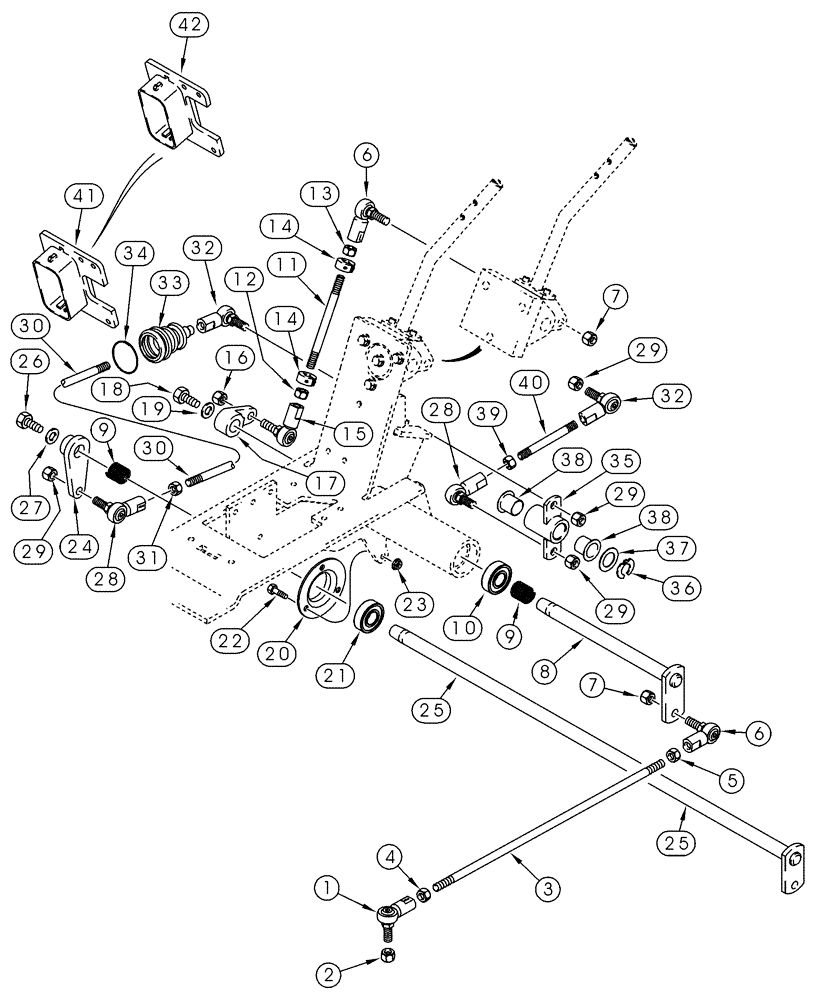

Запчасти Case 85XT (09-18) - LINKAGE LOADER & GROUND DRIVE, MODELS WITH FOOT CTRLS, L.H., N. AMER. -JAF0352233, EURO. -JAF0352714 (09) - CHASSIS

1

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

1шт.

2

232-4616

LOCK NUT,3/8"-24, GC

1шт.

3

255862A1

STEM

222 mm

1шт.

4

425-116

NUT,3/8" - 24, Gr 5

1шт.

5

125-11011

NUT,3/8"-24, G5, LH

1шт.

6

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

7

232-4616

LOCK NUT,3/8"-24, GC

2шт.

8

238968A3

SHAFT

1шт.

9

229383A1

SPRING

2шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces: 102776A1

1шт.

11

187234A2

ROD

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

1шт.

13

125-11011

NUT,3/8"-24, G5, LH

1шт.

14

255561A1

COLLAR ASSY.

2шт.

15

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

1шт.

16

232-4616

LOCK NUT,3/8"-24, GC

1шт.

17

237773A1

LEVER ASSY.

1шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

20

112380A1

BEARING ASSY

Incl Ref 21

1шт.

21

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Replaces: 102776A1

1шт.

Part of bearing P/N 112380A1

1шт.

22

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

3шт.

23

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

24

300083A1

ARM

1шт.

25

275022A1

SHAFT

1шт.

26

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

28

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

2шт.

29

232-4616

LOCK NUT,3/8"-24, GC

4шт.

30

302922A1

ROD

160 mm

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

1шт.

32

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

2шт.

33

132873A1

BELLOWS

1шт.

34

189109A1

SPRING,Compression, 42mm OD

1шт.

35

302914A1

POWER ARM

1шт.

36

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

37

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

49/64 x 1-15/64 x 1/32

1шт.

38

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

2шт.

39

425-116

NUT,3/8" - 24, Gr 5

1шт.

40

302923A1

ROD

1шт.

41

308193A1

PROTECTOR

30-Pin Connector, No Longer Available, Order 308193A2

1шт.

42

308193A2

SHROUD

30-Pin Connector

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
