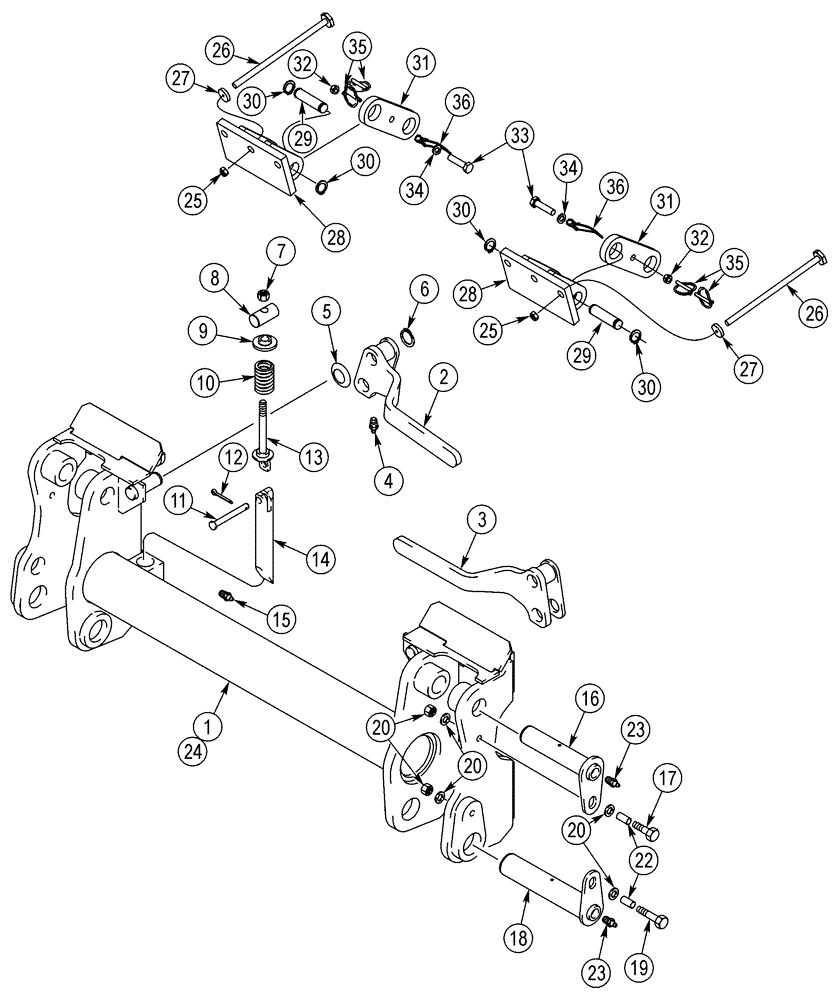

Запчасти Case 85XT (09-04) - COUPLER, MECHANICAL (09) - CHASSIS

1

143137A6

FRAME

1шт.

2

246651A1

LEVER

Left-Hand

1шт.

3

246649A1

LEVER

Right-Hand

1шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

5

A76552

SPRING

2шт.

6

800-1124

SNAP RING,M22, Ext

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

H436001

TRUNNION

2шт.

9

240486A1

GUIDE

2шт.

10

401539A1

SPRING

Replaces A27289

2шт.

11

728-1240

CLEVIS PIN,M12 x 40

2шт.

12

733-3220

COTTER PIN,M3.2 x 20

2шт.

13

410762A1

ROD

Replaces 240489A1

2шт.

14

240484A1

PIN,31.83mm OD x 206mm L

2шт.

15

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

16

255071A2

PIN,35mm OD x 177mm L

Upper

2шт.

17

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

2шт.

18

255072A2

PIN,45mm OD x 215mm L

Lower

2шт.

19

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

21

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

22

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

24

293214A1

FRAME ASSY

Europe Only

1шт.

25

832-41312

NUT,M12 x 1.75, Cl 10

Europe Only

4шт.

26

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

Europe Only

4шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Europe Only

4шт.

28

372051A2

BRACKET

Bucket Locking, Europe Only

2шт.

29

D138889

PIN,69.98mm OD x 160mm L

Lift Cylinder Pivot, Europe Only

2шт.

30

103-1687

SNAP RING,#87, Ext

Europe Only

4шт.

31

405721A1

LINK

Bucket Locking, Europe Only

2шт.

32

832-41310

NUT,M10 x 1.5, Cl 10

Europe Only

2шт.

33

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

Europe Only

2шт.

35

A30338

PIN

Europe Only

2шт.

36

L78786

CABLE RETAINER

Europe Only

2шт.

20

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

34

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

Europe Only

2шт.
