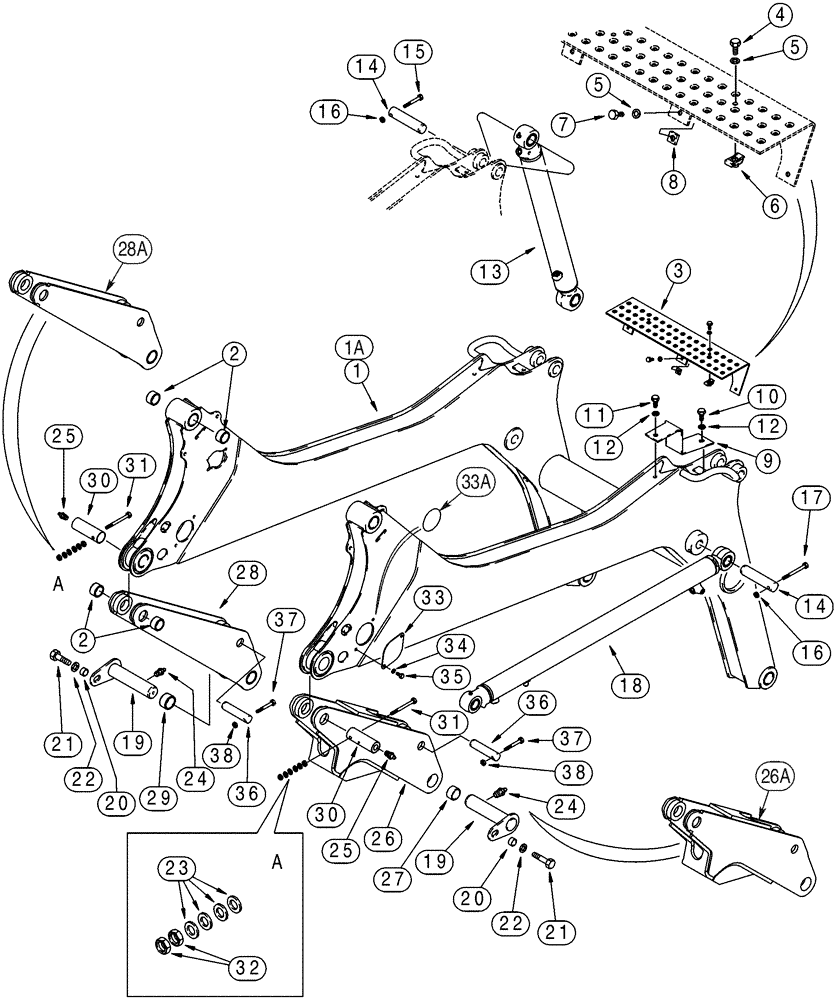

Запчасти Case 85XT (09-01) - FRAME LOADER LIFT (09) - CHASSIS

232083A5

ARM

Loader, Used In Production, For Service Order 307160A1, Ref. 1, North American Models -JAF0352233, European Models -JAF0352714, Includes: Ref. 1 and 2

1шт.

Part of arm P/N 307160A1

1шт.

232083A6

Loader, Used In Production, For Service Order 307160A2, Ref. 1A, North American Models JAF0352234-, European Models JAF0352715-, Includes: Ref. 1A and 2

1шт.

Part of arm P/N 307160A2

1шт.

1

307160A1

ARM

Also Includes Decals 2, 3, 4 and 5, See Page(s) 9-163, Also Includes Decal 15, See Page(s) 9-169, Also Includes Decals 3 and 4, See Page(s) 9-173, North American Models -JAF0352233, European Models -JAF0352714, Includes: 232083A5, Also Includes: Ref. 2

1шт.

Part of loader arm P/N 232083A5

1шт.

1a

307160A2

ARM

Also Includes Decals 18, 19 and 20, See Page(s) 9-165, Also Includes Decal 15, See Page(s) 9-169, Also Includes Decals 3 and 4, See Page(s) 9-173, North American Models JAF0352234-, European Models JAF0352715-, Includes: 232083A6, Also Includes: Ref. 2

1шт.

Part of loader arm P/N 232083A6

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

8шт.

Part of loader arm P/N 232083A5

1шт.

Part of loader arm P/N 232083A6

1шт.

Part of arm P/N 307160A1

1шт.

Part of arm P/N 307160A2

1шт.

3

245828A1

SHEET ASSY.

Step, Upper, 620 mm (24-13/32 in.), Wide, North American Models -JAF0352233, European Models -JAF0352714

1шт.

3

432328A1

STEP

Step, Upper, 476 mm (18-3/4 in.) Wide, North American Models JAF0352234-, European Models JAF0352715-

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

122158A1

NUT,M8, U

2шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

9

198786A1

COVER

1шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

13

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

Bucket Tilt, 70 ID x 525 mm strk, See Figure 08-24, Replaces: 258426A2

2шт.

13

258426A3R

REMAN-HYD CYLINDER

85 XT

2шт.

13

258426A3C

CORE-HYD CYLINDER

Return Number

2шт.

14

139089A1

PIN,35mm OD x 149mm L

4шт.

15

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

16

832-41410

NUT,M10 x 1.5, Cl 10

4шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

18

189980A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

Loader Lift, 64 ID x 1049 mm strk, See Figure 08-23

2шт.

19

254431A1

PIN

Ear 6.35 mm Thick, No Longer Available, Order 254431A2, Ref. 19A

2шт.

19a

254431A2

PIN

Ear 4.52 mm Thick

2шт.

20

49335K

SPACER,1/2" X-Strng Pipe x .406"

2шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

26

231910A3

ROD, CONNECTING

Right-Hand, If Used, Includes: Ref. 27

1шт.

26a

330787A2

LINK

Right-Hand, Replaces: 330787A1, If Used, Includes: Ref. 27

1шт.

27

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

Part of link P/N 330787A2

1шт.

Part of connecting rod P/N 231910A3

1шт.

28

220054A3

ROD, CONNECTING

Left-Hand, If Used, Includes: Ref. 29

1шт.

28a

330779A1

ROD, CONNECTING

Left-Hand, If Used, Includes: Ref. 29

1шт.

29

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

2шт.

Part of connecting rod P/N 220054A3

1шт.

Part of connecting rod P/N 330779A1

1шт.

30

179637A1

PIN,45mm OD x 134mm L

2шт.

31

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

2шт.

33

253490A1

COVER

No Longer Available, Order 313677A1, Ref. 33A

2шт.

33a

313677A1

COVER

2шт.

35

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

36

199896A1

PIN,35mm OD x 124mm L

2шт.

37

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

38

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
