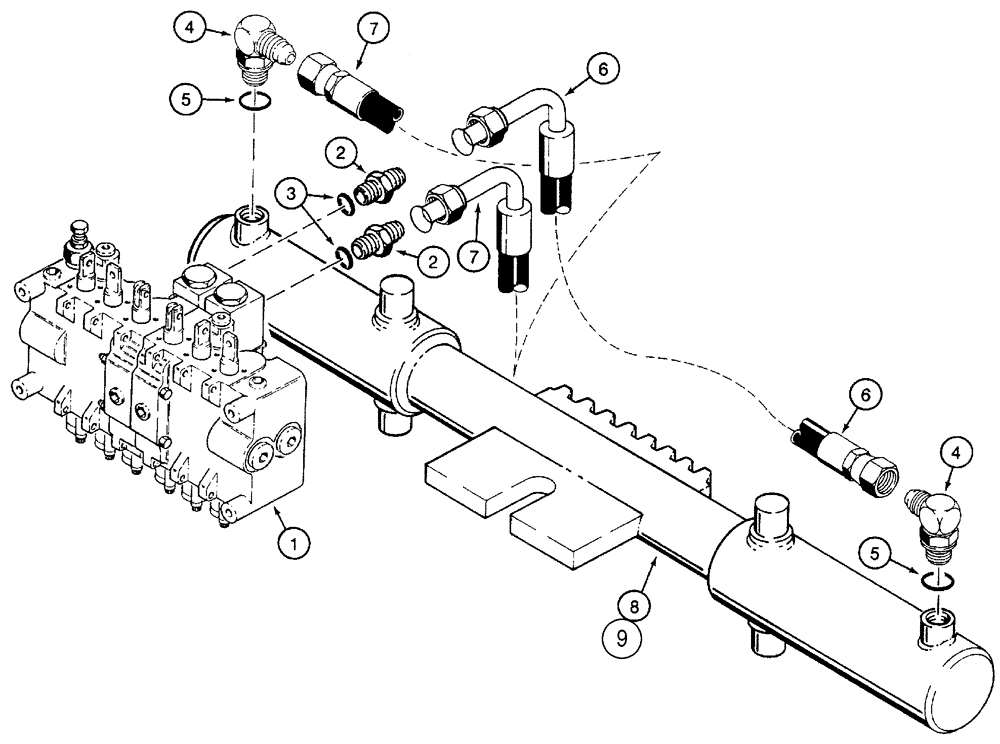

Запчасти Case 85XT (08-40) - HYDRAULIC SYSTEM BACKHOE SWING CYLINDER NORTH AMERICA, D125 BACKHOE, WITH HOSES AT CONTROL VALVE (08) - HYDRAULICS

1

H674500

VALVE

Backhoe, See Figures 08-38 - 08-51

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5059

1шт.

4

H439269

ELBOW

Includes: Ref. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of elbow P/N H439269

1шт.

6

H439060

HOSE

Right Hand, 1270 mm (50 in.)

1шт.

7

H439061

HOSE

Left Hand, 1040 mm (41 in.)

1шт.

8

H673149

CYLINDER ASSY.

Swing, 70 ID x 254 mm strk, See Figure 08-52, No Longer Available, Order 379623A1

1шт.

9

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

Swing, 70 ID x 254 mm strk, See Figure 08-52

1шт.
