Запчасти Case 85XT (08-38) - HYDRAULIC SYSTEM BACKHOE SUPPLY AND RETURN NORTH AMERICA, D125 BACKHOE, IF USED (08) - HYDRAULICS

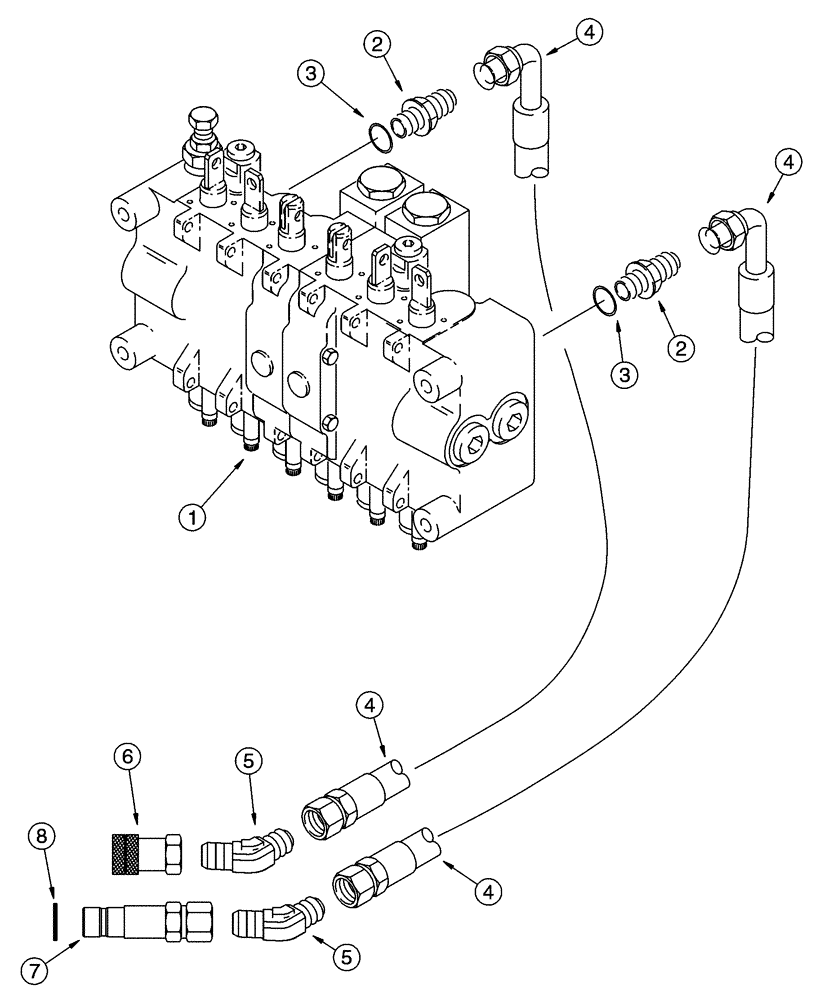

Схема запчастей Case 85XT - (08-38) - HYDRAULIC SYSTEM BACKHOE SUPPLY AND RETURN NORTH AMERICA, D125 BACKHOE, IF USED (08) - HYDRAULICS
6
3
4
2
1
3
7
8
2
5
4
4
5
4

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe, See Figures 08-39 - 08-51

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of connector P/N 218-5062

1шт.

4

254511A1

HOSE

2000 mm (78-3/4 in.)

2шт.

5

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

6

143431A1

COUPLING, QUICK, FEM

Female

1шт.

7

238243A1

COUPLING, BREAK AWAY

Male, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, Order 185786A1

1шт.

Part of set of parts P/N 185786A1

1шт.

Part of breakaway coupling P/N 238243A1

1шт.

185786A1

SET OF PARTS

Consists Of: Ref. 8

1шт.

Выбрано товаров: 12
